Fuel Filler Door Unit and Actuator Overview

Fuel Filler Door Unit and Actuator Overview

• If tank flap does not open, it can be opened by hand via the actuator - 6 -.

• The actuator - 6 - and inside the side panel and is accessible after removing the luggage compartment trim panel.

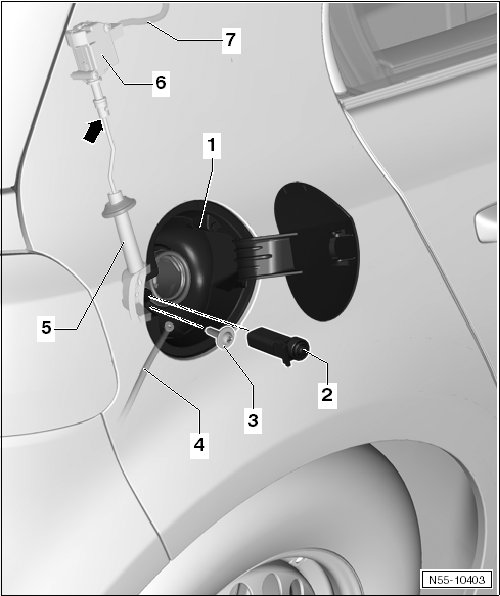

1 Fuel Filler Door Unit

• Removing and installing, refer to => [ Fuel Filler Door Unit ] Fuel Filler Door Unit.

2 Opening Aid

3 Bolt

• Tightening specification: 1.5 Nm

4 Water Drain Hose

• Routed between the wheel housing and the wheel housing liner.

5 Guide Piece

• With a rubber grommet

6 Actuator

• Removing and installing, refer to => [ Fuel Filler Door Actuator ] Service and Repair.

• Emergency release: from the inside, move the handle upward - arrow -.

7 Electrical Connection
