Luggage Compartment Access/Start Authorization Antenna (R137)

Luggage Compartment Access/Start Authorization Antenna (R137)

Component location of Luggage Compartment Access/Start Authorization Antenna is in luggage compartment, at center in front of spare wheel well.

• No coding, basic setting or adaptation is necessary if Luggage Compartment Access/Start Authorization Antenna is replaced. Erase the entry in the DTC memory in "Guided Fault Finding" with the Vehicle diagnostic tester.

Removing

- Turn off the ignition and all electrical consumers.

- Remove the carpet from the luggage compartment.

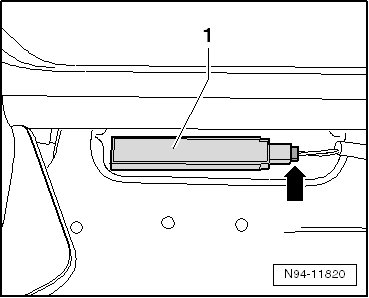

- Remove the access/start authorization antenna in luggage compartment (R137) - 1 - vertically. Pay attention to the wires still connected.






- Disconnect the connector - arrow - and remove the access/start authorization antenna in luggage compartment - 1 -.

Installation

Installation is performed in the reverse order of removal.
