Keyless Start Control Module: Locations

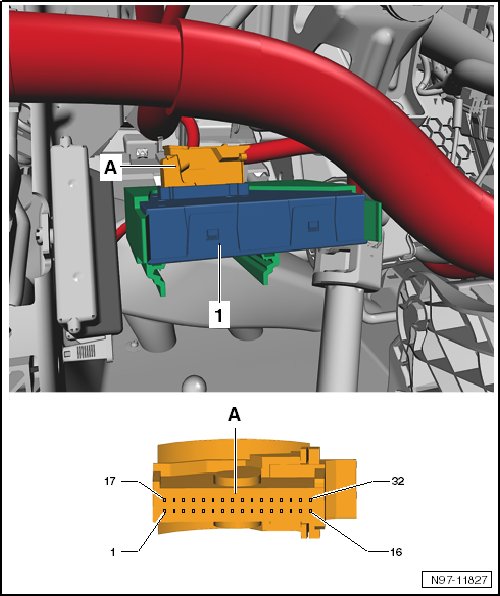

Control modules in front part of vehicle

Access/Start Control Module -J518-







1 Access/Start Control Module -J518-
next to steering column, near center console
Connector:
• -A32-pin connector -T32b-
