Differential: Specifications

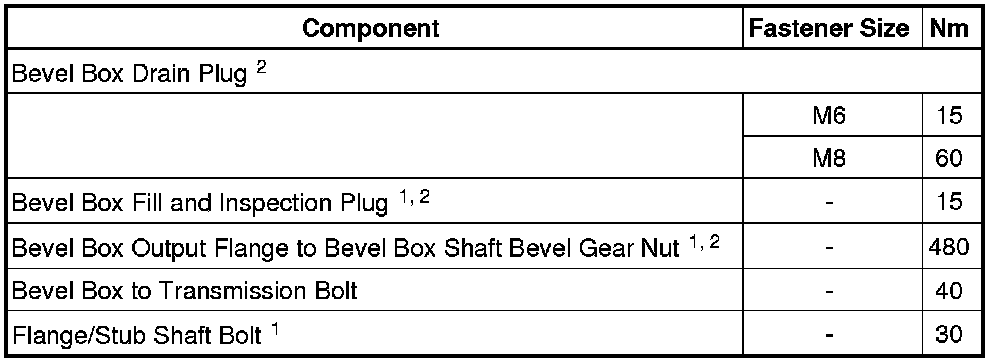

Fastener Tightening Specifications






• 1 Always replace

• 2 R32 models only
