Ribbed Belt Drive Overview

Ribbed Belt Drive Overview

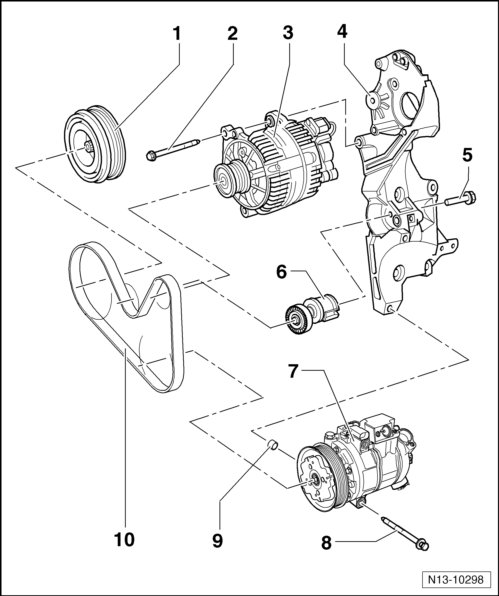

1 Vibration Damper

• Installation is only possible in one position because of the offset holes.

2 Bolt

• 25 Nm

3 Generator

4 Accessory Bracket

• For the assemblies.

• Removing and installing, refer to => [ Accessory Bracket ] Service and Repair.

5 Bolt

• 20 Nm + an additional 180° (1/2) turn.

• Always replace.

6 Ribbed Belt Tensioner

7 Air Conditioning (A/C) Compressor

8 Bolt

• 25 Nm

9 Alignment Sleeve

10 Ribbed Belt

• Mark the rotation direction before removing.

• Check for wear.

• Do not kink.

• Removing and installing, refer to => [ Ribbed Belt ] Ribbed Belt.
