License Plate Lamp Attached by Screws

License Plate Lamp Attached by Screws

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Press retaining tab - arrow - in direction of arrow with a suitable screwdriver and remove license plate lamp from bumper.






- Disengage and disconnect harness connector - arrow -.






Installation

Installation is the reverse of removal, noting the following:

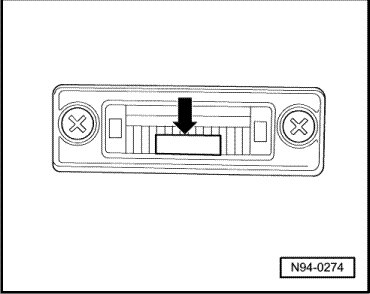

• There is a small silver protective strip - arrow - applied to the license plate lamp lens. When installing the lens, this strip must always face the bumper.






- Check the license plate lamp function.
