Bulb, License Plate Lamp Attached by Screws

Bulb, License Plate Lamp Attached by Screws

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove bolts - arrows - for the license plate light.

- Remove diffusion lens with bulb from license plate lamp housing.

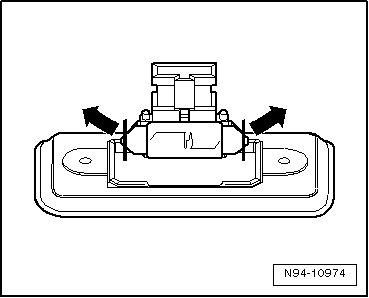

- Press contact plate in - direction of arrow - and remove the bulb.






Bulb: tubular bulb 12V C5W

Installation

Installation is the reverse of removal, noting the following:

• There is a small silver protective strip - arrow - applied to the license plate lamp lens. When installing the lens, this strip must always face the bumper.

• When assembling license plate light, make sure that diffusion lens gasket has proper fit.






- Tighten the mounting bolts - arrows - to 1.2 Nm.






- Check the license plate lamp function.
