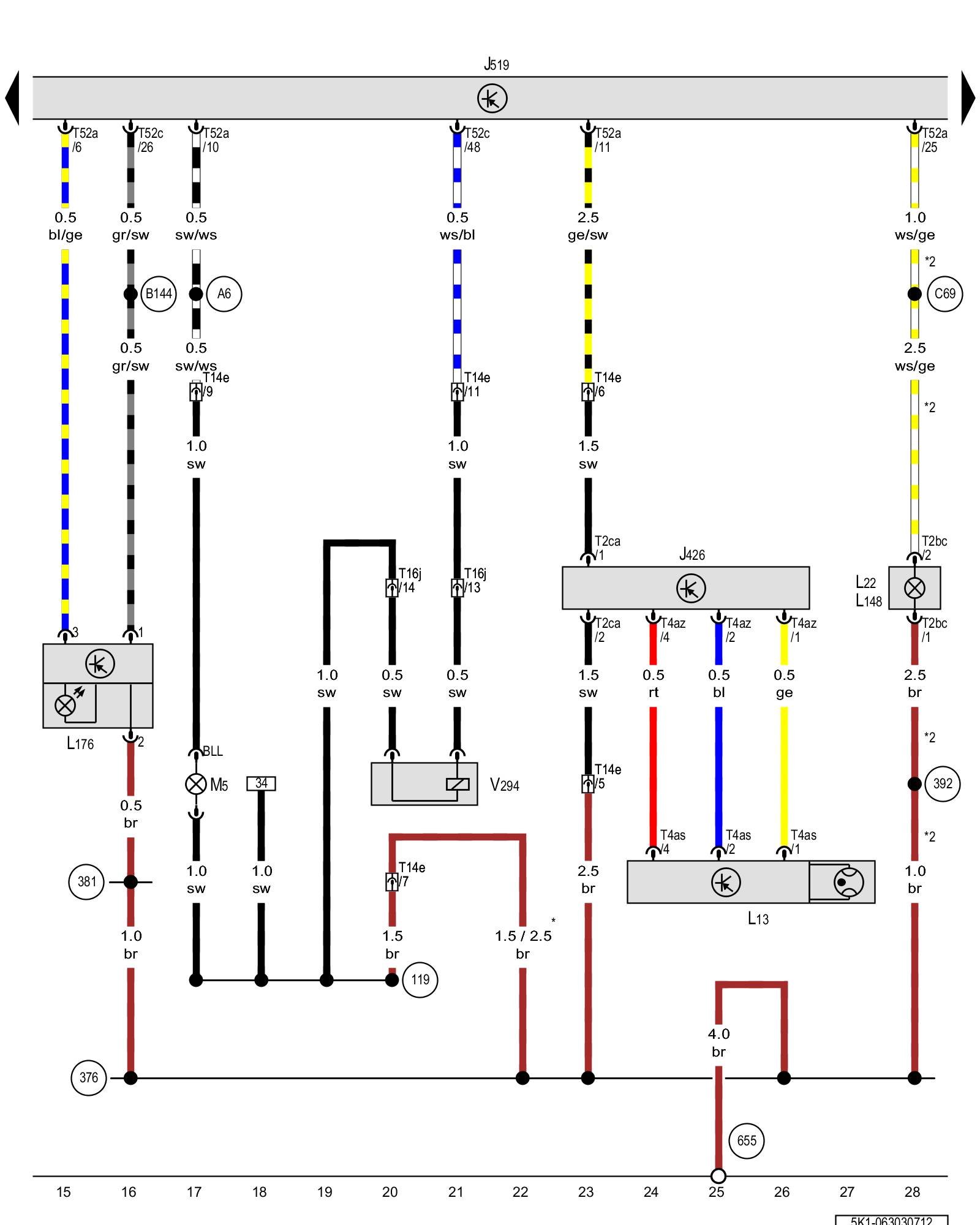

Diagram 63/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Left HID lamp ballast, Left HID headlamp bulb, Left front fog lamp bulb, Left cornering lamp bulb, Left daytime running lamp and parking lamp LED module, Left front turn signal bulb, Left low beam headlamp reflector motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J426 - Left HID lamp ballast, on the left headlamp

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

L13 - Left HID headlamp bulb

L22 - Left front fog lamp bulb

L148 - Left cornering lamp bulb

L176 - Left daytime running lamp and parking lamp LED module

M5 - Left front turn signal bulb

T2bc - Double connector

T2ca - Double connector

T4as - 4-pin connector

T4az - 4-pin connector

T14e - 14-pin connector, on the left headlamp

T16j - 16-pin connector, under the instrument panel, left

T52a - 52-pin connector

T52c - 52-pin connector

V294 - Left low beam headlamp reflector motor

(119) - Ground connection 1 (in headlamp wiring harness)

(376) - Ground connection 11 (in main wiring harness)

(381) - Ground connection 16 (in main wiring harness)

(392) - Ground connection 27 (in main wiring harness)

(655) - Ground connection on left headlamp Overview Of Ground Connections in Engine Compartment

(A6) - Left turn signal positive connection (in instrument panel wiring harness)

(B144) - Positive connection (58L) (in interior wiring harness)

(C69) - Fog lamp connection (in left front wiring harness)

* - from November 2009

*2 - Only for vehicles with fog lamps
