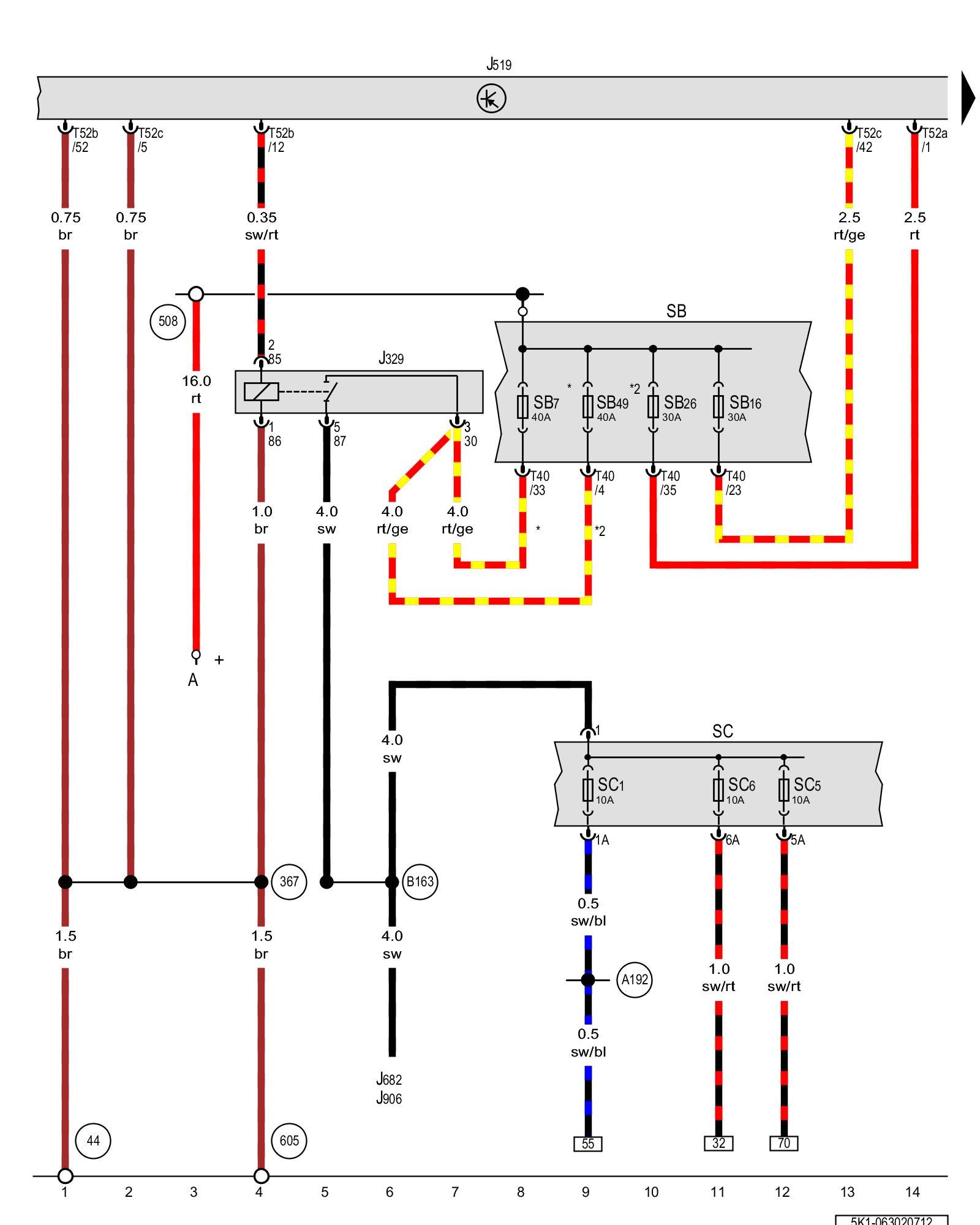

Diagram 63/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 15 power supply relay, Fuse panel B, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

J329 - Terminal 15 power supply relay Overview Of Relay Carrier

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J682 - Terminal 50 power supply relay Overview Of Relay Carrier

J906 - Starter relay 1 Overview Of Relay Carrier

SB - Fuse panel B Fuse overview (SA), (SB), (SC)

SC - Fuse panel C Fuse overview (SA), (SB), (SC)

SC1 - Fuse 1 (on fuse panel C) Fuse overview (SA), (SB), (SC)

SC5 - Fuse 5 (on fuse panel C) Fuse overview (SA), (SB), (SC)

SC6 - Fuse 6 (on fuse panel C) Fuse overview (SA), (SB), (SC)

SB7 - Fuse 7 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB16 - Fuse 16 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB26 - Fuse 26 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB49 - Fuse 49 (on fuse panel B) Fuse overview (SA), (SB), (SC)

T40 - 40-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior

(367) - Ground connection 2 (in main wiring harness)

(508) - Terminal 30 threaded connection (on E-box)

(605) - Ground connection on upper steering column Overview Of Ground Connections in Interior

(A192) - Positive connection 3 (15a) (in instrument panel wiring harness)

(B163) - Positive connection 1 (15) (in interior wiring harness)

* - E-Box low

*2 - E-Box high

Next Diagram 63/3 (Tracks 15-28)
