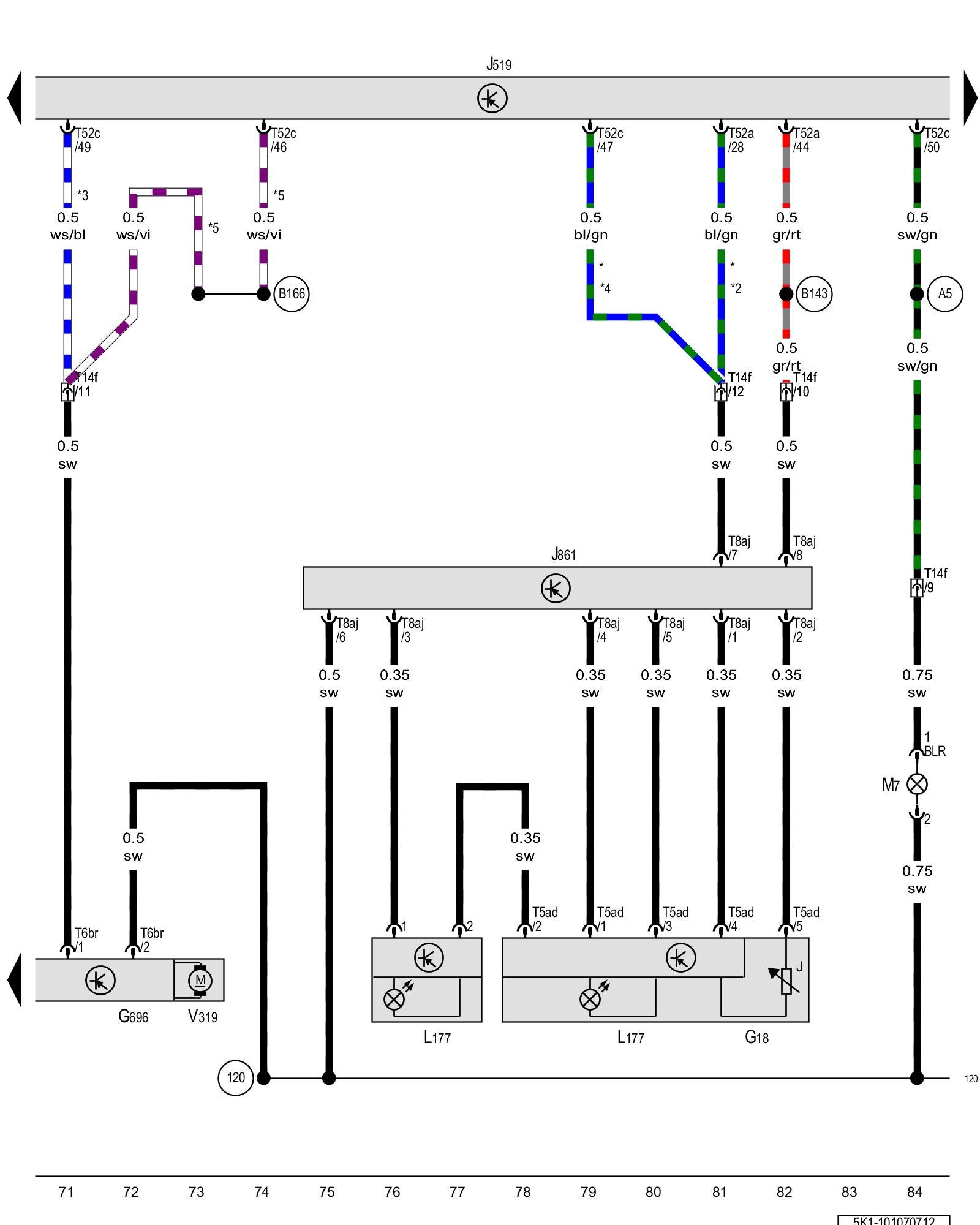

Diagram 101/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Sensor for right variable headlamp positioning motor, Right daytime running lamp and parking lamp LED module, Right front turn signal bulb, Right adaptive cornering lamp motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G18 - Temperature sensor

G696 - Sensor for right variable headlamp positioning motor, in the left headlamp, in the right headlamp

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J861 - Right daytime running lamp and parking lamp control module, on the left headlamp, in the left headlamp, in the left headlamp, in the right headlamp

L177 - Right daytime running lamp and parking lamp LED module

M7 - Right front turn signal bulb

T5ad - 5-pin connector

T6br - 6-pin connector

T8aj - 8-pin connector

T14f - 14-pin connector, on the right headlamp

T52a - 52-pin connector

T52c - 52-pin connector

V319 - Right adaptive cornering lamp motor

(120) - Ground connection 2 (in headlamp wiring harness)

(A5) - Right turn signal positive connection (in instrument panel wiring harness)

(B143) - Positive connection (58R) (in interior wiring harness)

(B166) - Connection 56a (in interior wiring harness)

* - Only for vehicles with daytime running lamps

*2 - Only for vehicles with fog lamps

*3 - through April 2011

*4 - Only for vehicles without rear fog lamps

*5 - from May 2011
