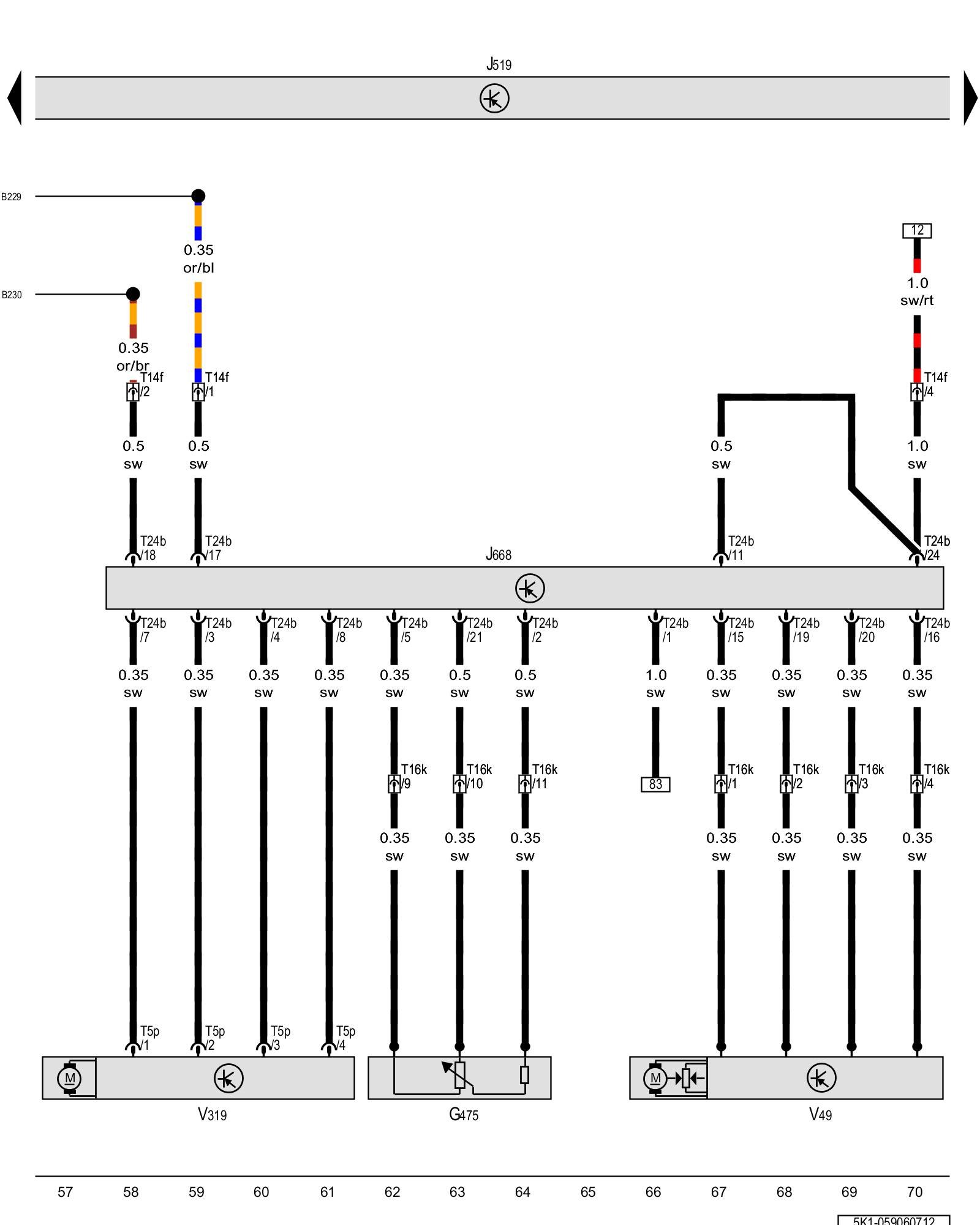

Diagram 59/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Right swivel module position sensor, Vehicle electrical system control module, Right headlamp power output stage, Right headlamp beam adjustment motor, Right adaptive cornering lamp motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G475 - Right swivel module position sensor

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J668 - Right headlamp power output stage, on the right headlamp

T5p - 5-pin connector Overview of connector stations and connectors

T14f - 14-pin connector, on the right headlamp

T16k - 16-pin connector, in the right headlamp, black

T24b - 24-pin connector

V49 - Right headlamp beam adjustment motor

V319 - Right adaptive cornering lamp motor

(B229) - High bus connection (in interior wiring harness)

(B230) - Low bus connection (in interior wiring harness)

Previous Diagram 59/5 (Tracks 43-56)

Next Diagram 59/7 (Tracks 71-84)
