Entry Lamp In Exterior Mirror, Bulb

Entry Lamp in Exterior Mirror, Bulb

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the entry lamp in outside mirror. Refer to => [ Entry Lamp in Exterior Rearview Mirror (W52)/(W53) ] Entry Lamp In Exterior Rearview Mirror (W52)/(W53).

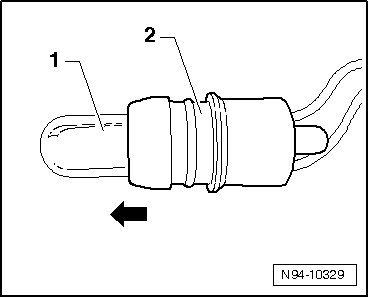

- Pull the bulb - 1 - out of the socket - 2 - in - direction of arrow -.






Bulb: 12V, W6W

Installation

Install in reverse order of removal, noting the following:

• Check the exterior mirror function after installing it.
