Front Passenger Airbag Disabled Indicator Lamp (K145)

Front Passenger Airbag Disabled Indicator Lamp (K145)


• Danger of the airbag deploying!

• The airbag could deploy if the unit is mishandled.

• Follow all safety precautions when working with airbags.

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove the trim frame from the radio/navigation system.

- Remove the trim frame from the climate controls.

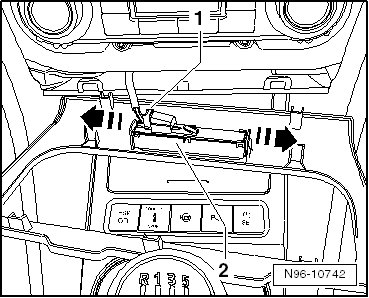

- Disconnect the connector - 1 -.






- Press the locking mechanisms away from each other in - direction of arrow - and remove the front passenger airbag disabled indicator lamp - 2 -.

Installation

Installation is performed in the reverse order of removal.
