Instrument Cluster

Instrument Cluster

• Prior to replacing the instrument cluster, perform the procedure => [ Instrument Cluster, Replace ] Instrument Cluster, Replace to check the data stored in the control module.

Removal

- Switch off ignition, switch off all electrical consumers and remove ignition key.

• It is not necessary to remove the steering wheel.

- Pull steering wheel all the way out and lock it in the lowest position.

- Remove upper section of steering column trim.

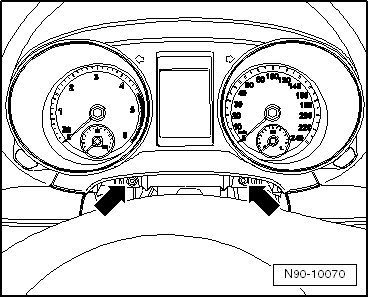

- Remove mounting bolts - arrows - of instrument cluster.






- Pull the instrument cluster back out of the instrument panel while being careful of the connected wires.

- Tilt the bracket - 1 - in the - direction of the arrow - and disconnect the connector - 2 -.






- Take the instrument cluster out of the vehicle.

Installation

Installation is performed in the reverse order of removal.
