Exhaust System: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Hose Clamps Up to 25 mm Dia. (3094)

• Drip Tray for VAS 6100 (VAS 6208)

• 14 mm Socket (T10401)

• Body Repair Saw (V.A.G 1523 A)

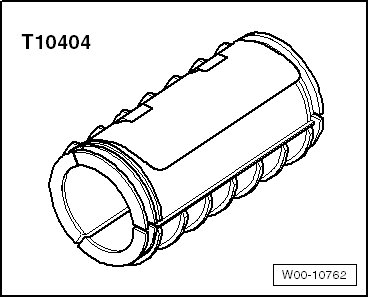

• Transportation Lock (T10404)






• Chain Pipe Cutter (VAS 6254)











Special tools, testers and auxiliary items required

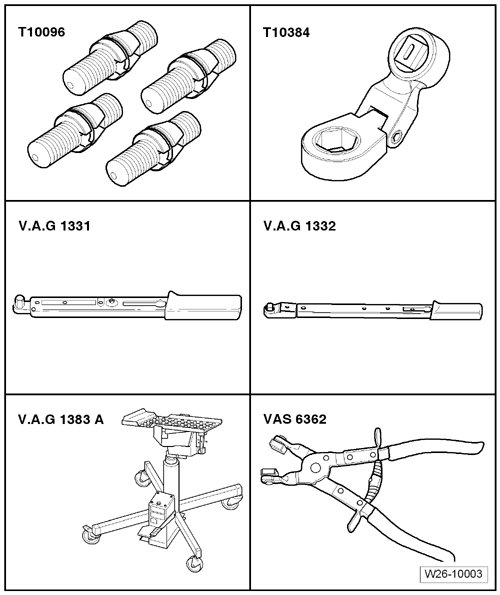

• Locating Pins (T10096)

• Wrench SW13 (T10384)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Hose Clip Pliers (VAS 6362)
