Diagram 32/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

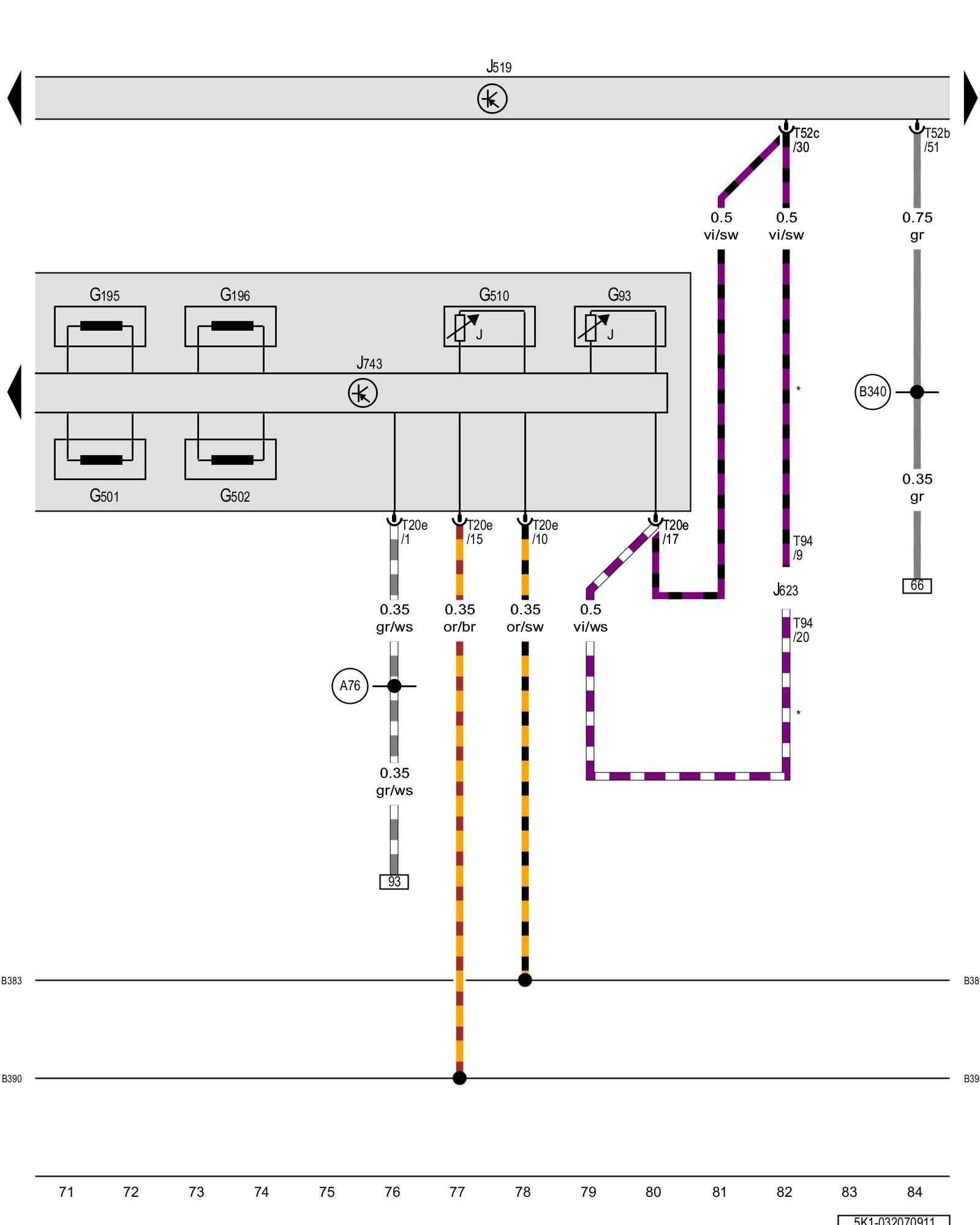

Transmission fluid temperature sensor, Transmission output speed sensor, Transmission output speed sensor 2, Driveshaft speed sensor 1, Driveshaft speed sensor 2, Temperature sensor in control module, DSG transmission Mechatronic





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G93 - Transmission fluid temperature sensor
Direct Shift Gearbox (DSG)

G195 - Transmission output speed sensor
Direct Shift Gearbox (DSG)
Transmission Fluid Temperature Sensor -G93- / Transmission Input Speed Sensor -G182- / Transmission Output Speed Sensor -G195-

G196 - Transmission output speed sensor 2
Direct Shift Gearbox (DSG)

G501 - Driveshaft speed sensor 1
Direct Shift Gearbox (DSG)

G502 - Driveshaft speed sensor 2
Direct Shift Gearbox (DSG)

G510 - Temperature sensor in control module
Direct Shift Gearbox (DSG)

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

J743 - DSG transmission Mechatronic, in the transmission Direct Shift Gearbox (DSG) [1][2]Automatically Shifted Manual Transmission/Transaxle

T20e - 20-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

T94 - 94-pin connector

(A76) - K-diagnostic lead connection (in instrument panel wiring harness)

(B340) - Connection 1 (58d) (in main wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

* - Refer to applicable engine wiring diagram
