Diagram 50/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Special Purpose Vehicle Control Module, Blocking Diode





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

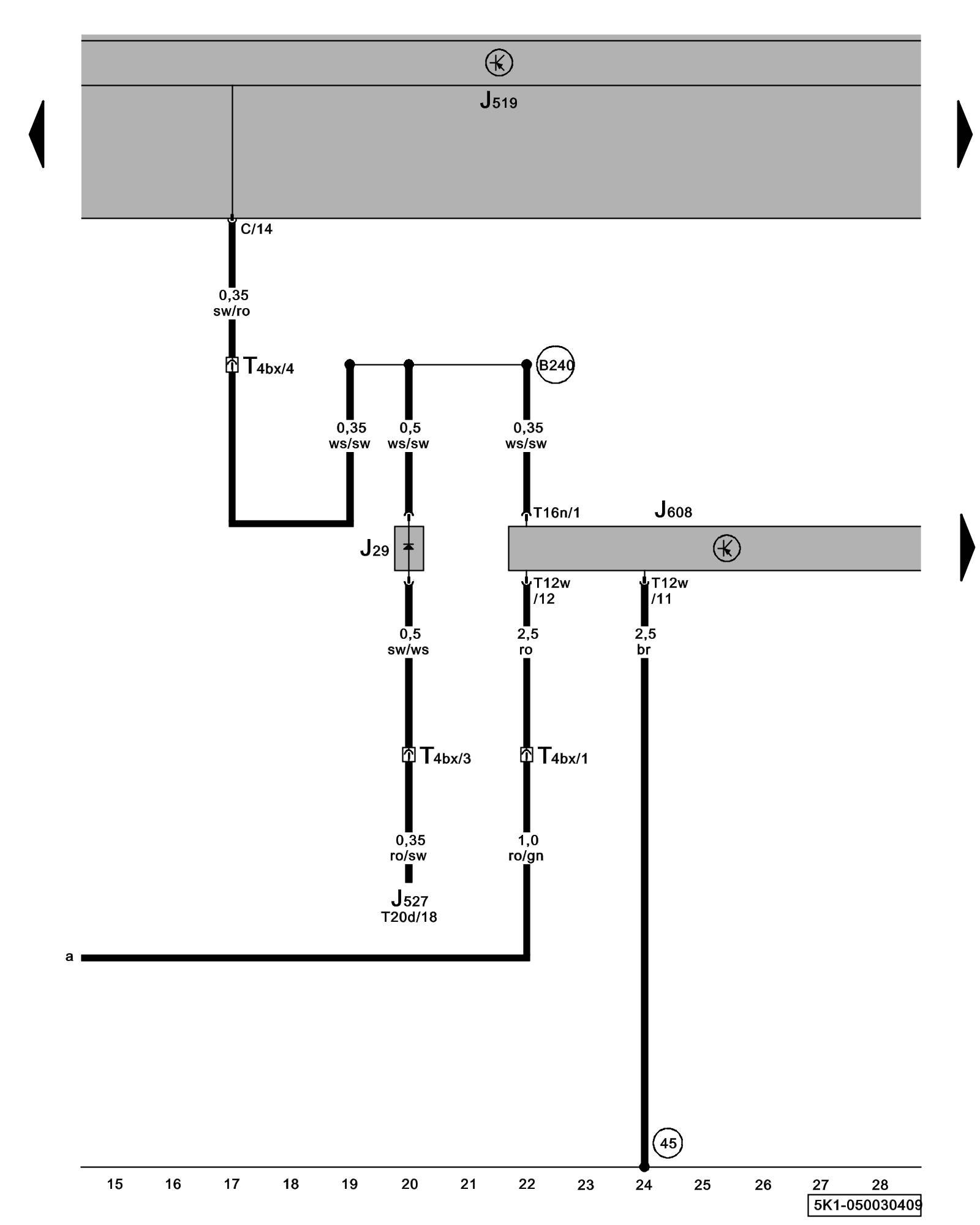

J29 - Blocking Diode, under instrument panel, left

J519 - Vehicle Electrical System Control Module Control modules in front part of vehicle - Overview of Control Modules

J527 - Steering Column Electronic Systems Control Module Control modules in front part of vehicle - Overview of Control Modules

J608 - Special Purpose Vehicle Control Module, below driver's seat Control Modules in The Rear Of The Vehicle

T4bx - 4-Pin Connector, A-pillar, lower left

T12w - 12-Pin Connector

T16n - 16-Pin Connector

T20d - 20-Pin Connector

(45) - Ground Connection (behind instrument panel, center)

(B240) - Plus Connection 2 (50) (in interior wiring harness)

Previous Diagram 50/2 (Tracks 1-14)

Next Diagram 50/4 (Tracks 29-42)
