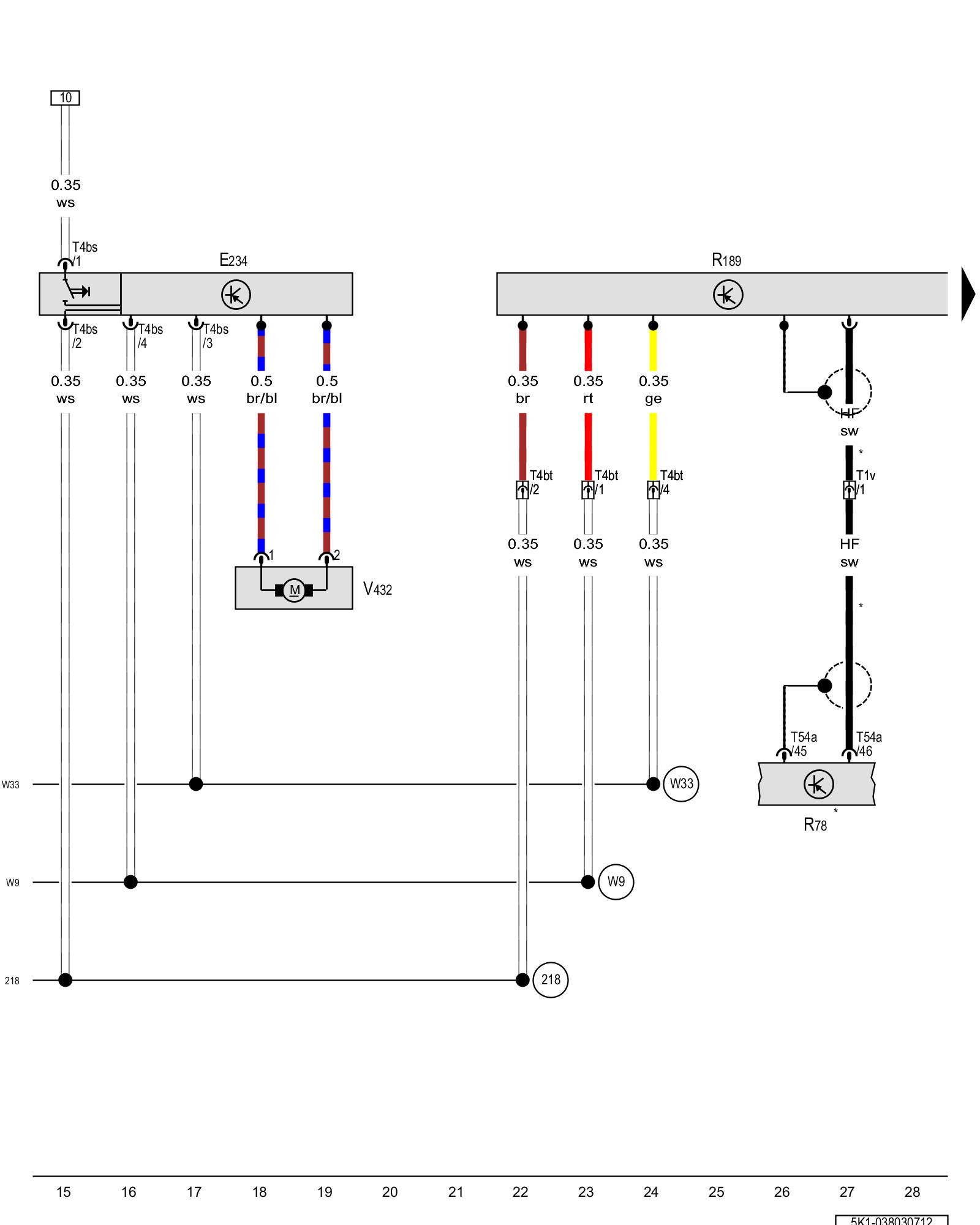

Diagram 38/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Release button in rear lid handle, Rearview camera, Emblem motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E234 - Release button in rear lid handle

R78 - TV tuner Control Modules in The Rear Of The Vehicle

R189 - Rearview camera Camera System

T1v - Single connector, behind the right C-pillar trim panel

T4bs - 4-pin connector

T4bt - 4-pin connector, in the rear lid Overview of connector stations and connectors

T54a - 54-pin connector

V432 - Emblem motor Camera System

(218) - Ground connection 1 (in rear lid wiring harness)

(W9) - Positive connection 1 (30) (in rear wiring harness)

(W33) - Back-up lamp connection (in rear lid wiring harness)

* - Only for vehicles with Japan equipment

Previous Diagram 38/2 (Tracks 1-14)

Next Diagram 38/4 (Tracks 29-42)
