Rear Guide and Guide Catch

Rear Guide and Guide Catch

• Always replace guides with cable as a pair.

Removing

- Removing sunroof glass panel, refer to => [ Sunroof Glass Panel ] Service and Repair.

- Removing installation unit, refer to => [ Installation Unit ] Installation Unit.

- Remove drive motor for sunroof glass panel, refer to => [ Sunroof Glass Panel Drive ] Service and Repair.

- Remove slotted guide rail. Refer to => [ Slotted Guide Rail ] Slotted Guide Rail.

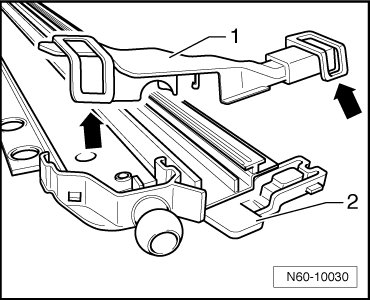

- Using a screwdriver, carefully disengage rain channel - 1 - in - direction of arrow - on both sides at bearing on guide retaining tabs - 2 - and remove rain channel.






- Disengage clip mechanism - arrows - of upper end piece - 1 - from lower end piece - 2 - using a screw driver and pull upper end piece off.

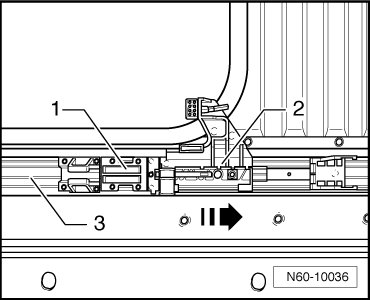

- Slide lower part of rear guide - 1 - in - direction of arrow - in guide rail - 3 - until the lock mechanism of guide catch - 2 - is released.






- Pull lower part of rear guide - 1 - and guide catch - 2 - together in - direction of arrow - out of guide rail - 3 -.

Installation

To install, perform the steps used for removal in reverse order.
