Lock Cylinder

Lock Cylinder

• Only the driver door still has a lock cylinder.

• Removing and installing the left lock is described here. Removing and installing a right lock cylinder is identical.

Removing






• Lock cylinder cap has been removed, refer to => [ Lock Cylinder Cover Cap ] Lock Cylinder Cover Cap.

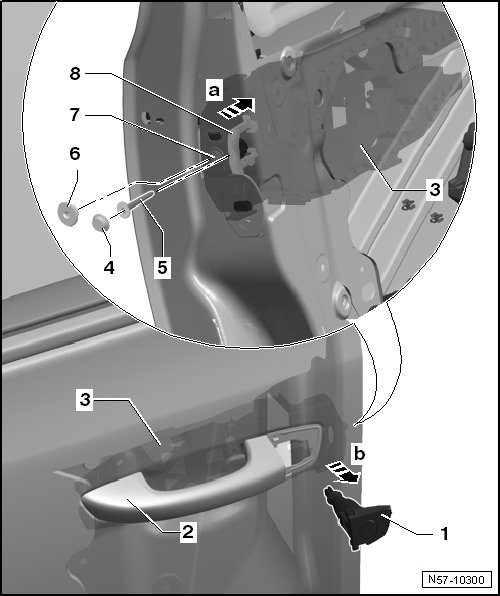

- Remove the covers - 4 and 6 -.

- Remove the bolt - 5 -.

- Turn the screw - 7 - until it stop and press the screw in - arrow a -, so that the bracket - 8 - releases the lock cylinder.

- Remove the lock cylinder housing - 1 - from the bracket - 3 - at a right angle - arrow b - to the door.

Installation






- Insert the lock cylinder housing - 1 - into the bracket - 3 - at a right angle.

- Install the bolts - 5 and 7 - into the mounting bracket.

- Screws - 5 and 7 - tightening specification: 4 Nm.

• During installation, lock cylinder housing must be pressed onto the outer door panel.

Further installation is in reverse order of removal.

• Then, always perform a function test with door opened.
