Lower A-Pillar Trim, Driver Side

Lower A-Pillar Trim, Driver Side

Removing

- Disengage sill panel trim from body in lower A-pillar trim transition area.

• 2-door: => [ Sill Panel Trim, 2-door ] Sill Panel Trim, 2-door

• 4-door: => [ Sill Panel Trim, 4-door ] Sill Panel Trim, 4-door

- Remove side instrument panel covers. Refer to => [ Instrument Panel Side Covers ] Instrument Panel Side Covers

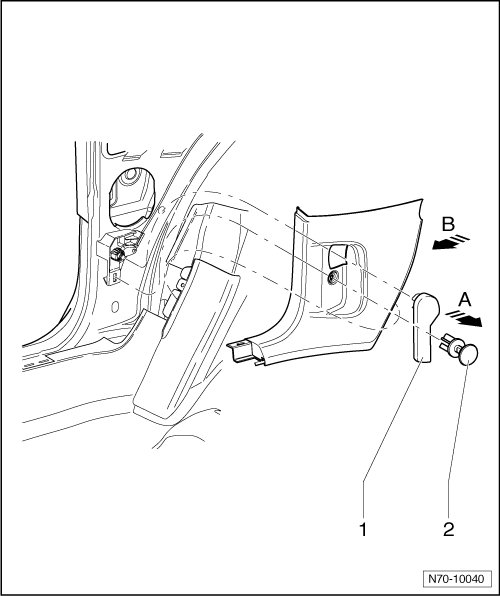

- Remove the hood release lever - 1 -.

- Remove clip - 2 -.

- Remove trim from body - arrow A -.

- Remove trim from door seal piping.

- Pull trim out of mount - arrow B -.

• Before installation, clip - 2 - must be checked for damage and replaced if necessary.






Installing

- Install in reverse order of removal.
