Roof Insulation and Reinforcement

Roof Insulation and Reinforcement

Removing

- Remove headliner. Refer to => [ Headliner ] Headliner

• A Lupo is shown as an example in the following illustrations. Removal and installation of insulation/reinforcements is same in Golf.

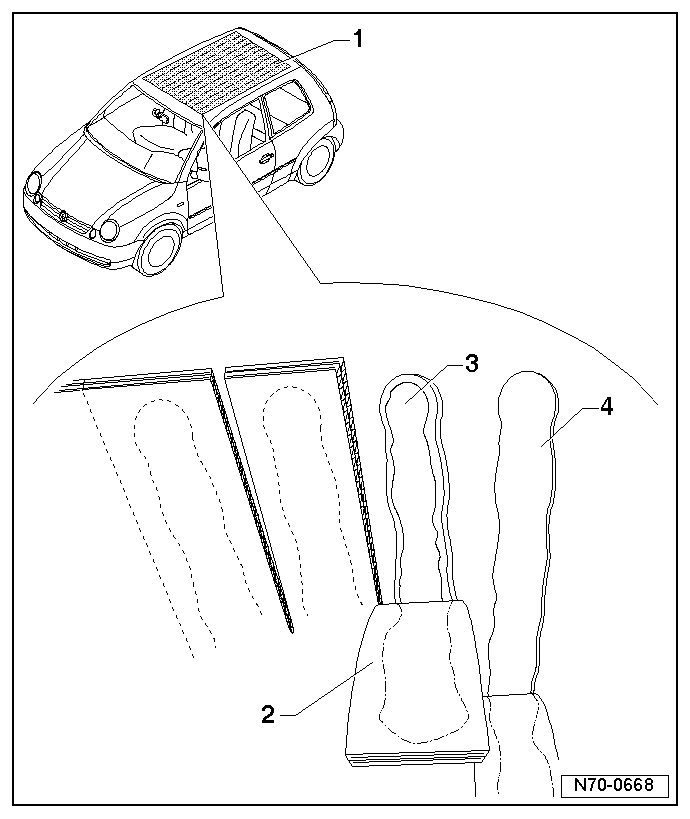

- Cut roof insulation/reinforcements - 1 - in direction of travel in strips approx. 6 cm wide - 2 - using a carpet knife.

- Pull off strips - 2 - from roof.

- Cut back the adhesive residue - 3 - using the electric cutter (V.A.G 1561 A) and the cutting blade (V.A.G 1561/20) - 4 -.

• If paint structure was damaged while removing roof insulation/reinforcements, paint damage must be repaired.






Installing

• Processing instructions of adhesive must be observed when installing roof insulation/reinforcements.

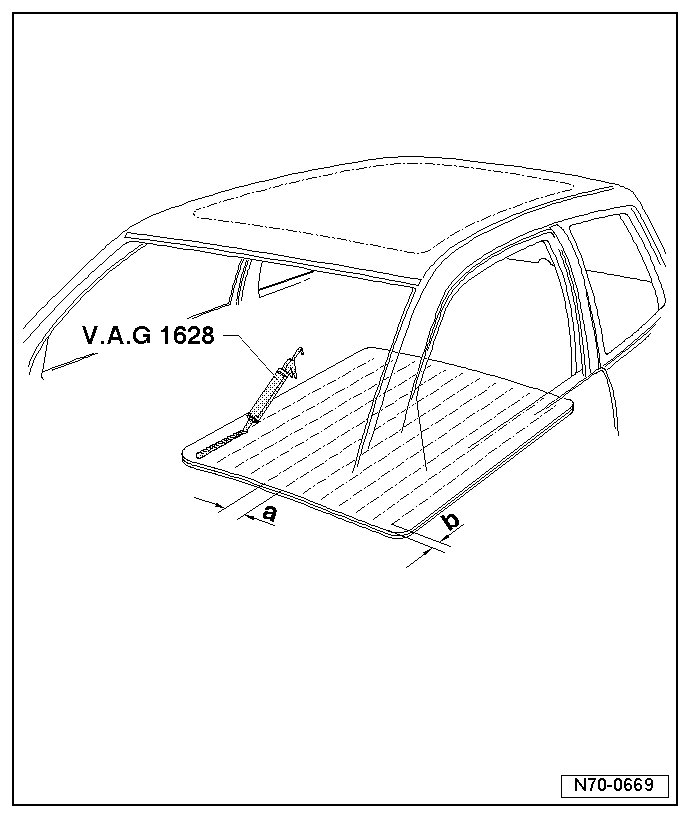

- Apply adhesive D 190 MKD A3 to insulation/reinforcements using cartridge gun (V.A.G 1628).

- Apply adhesive in beads on insulation/roof reinforcement.

- Dimension - a - = 58 +/- 2 mm.

- Dimension - b - = 25 +/- 5 mm.

- Transport roof insulation/reinforcements into vehicle through rear lid and press on to roof over the entire surface.
