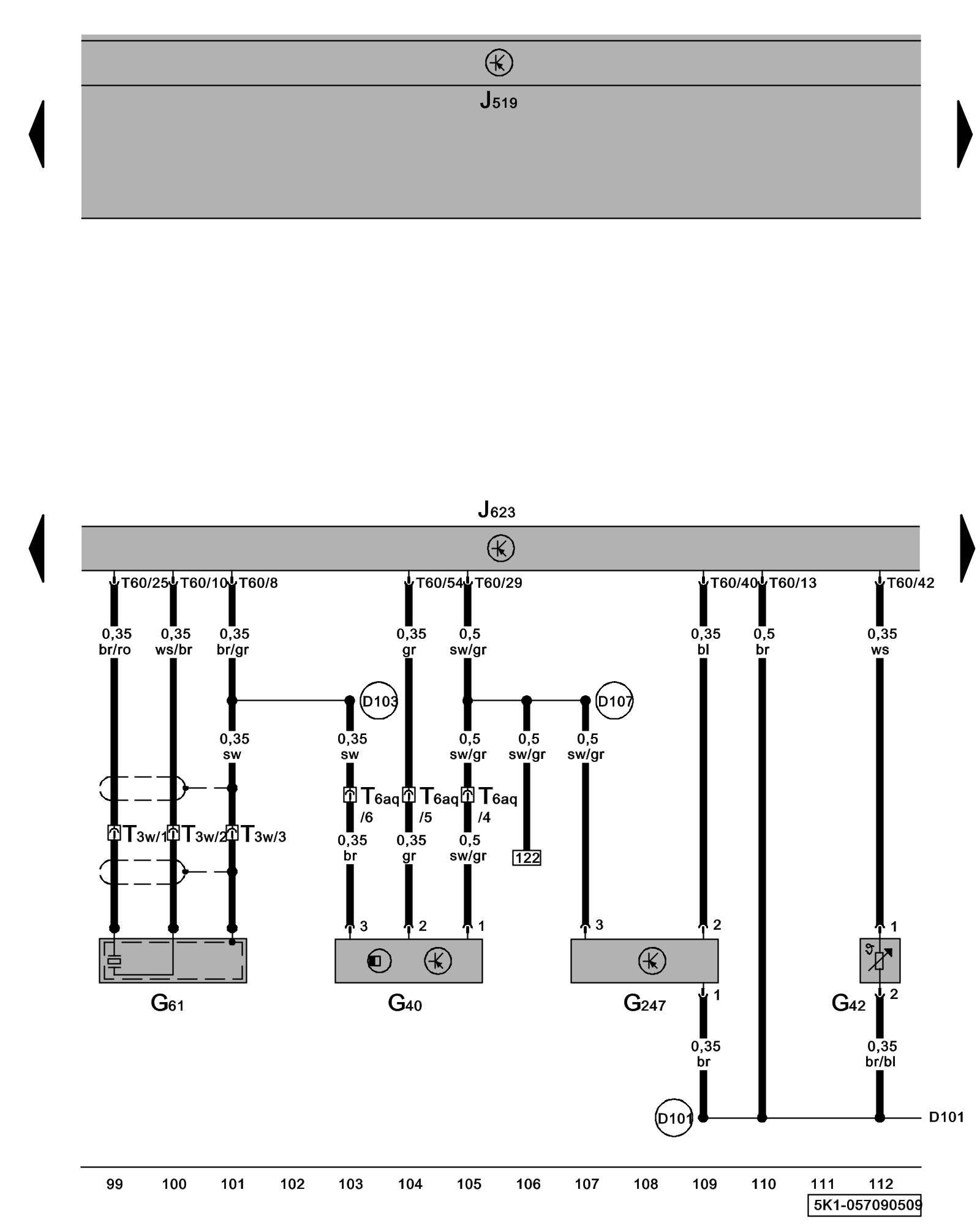

Diagram 57/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Control Module (ECM), Knock Sensor (KS) 1, Camshaft Position (CMP) Sensor, Fuel Pressure Sensor, Intake Air Temperature (IAT) Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft Position (CMP) Sensor
Locations
[1][2]Camshaft Position Sensor

G42 - Intake Air Temperature (IAT) Sensor
Locations
[1][2]Air Temperature Sensor ( Ambient / Intake )

G61 - Knock Sensor (KS) 1
Locations
Knock Sensor 1 -G61-

G247 - Fuel Pressure Sensor
Locations
[1][2]Diagrams

J519 - Vehicle Electrical System Control Module Control modules in front part of vehicle - Overview of Control Modules

J623 - Engine Control Module (ECM), in plenum chamber, center Control modules in front part of vehicle - Overview of Control Modules

T3w - 3-Pin Connector, on engine, front

T6aq - 6-Pin Connector, on engine, front

T60 - 60-Pin Connector

(D101) - Connection 1 (in engine compartment wiring harness)

(D103) - Connection 3 (in engine compartment wiring harness)

(D107) - Connection 5 (in engine compartment wiring harness)
