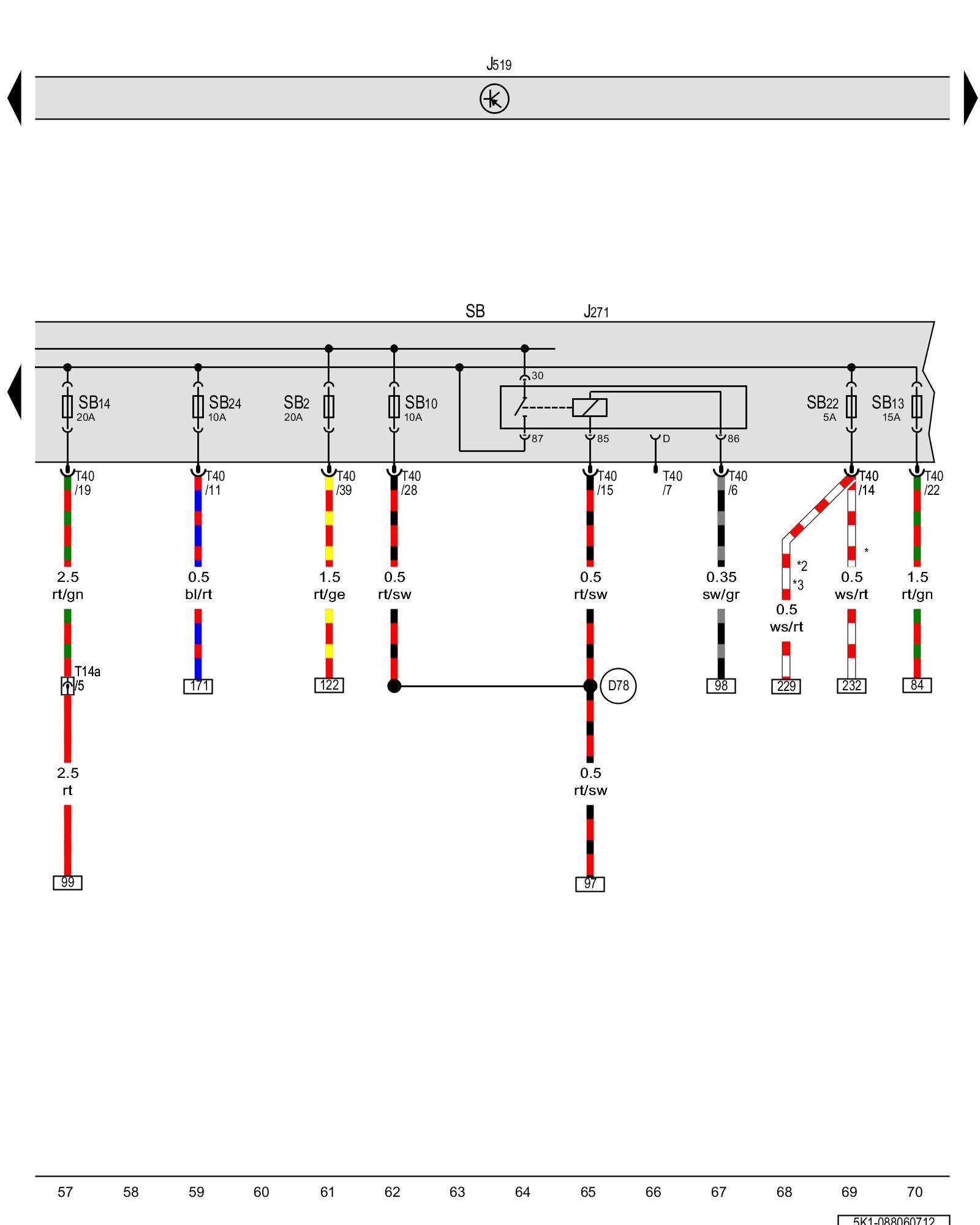

Diagram 88/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Motronic engine control module power supply relay, Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J271 - Motronic engine control module power supply relay Overview Of Relay Carrier

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

SB - Fuse panel B Fuse overview (SA), (SB), (SC)

SB2 - Fuse 2 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB10 - Fuse 10 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB13 - Fuse 13 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB14 - Fuse 14 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB22 - Fuse 22 (on fuse panel B) Fuse overview (SA), (SB), (SC)

SB24 - Fuse 24 (on fuse panel B) Fuse overview (SA), (SB), (SC)

T14a - 14-pin connector, near the battery Overview of connector stations and connectors

T40 - 40-pin connector

(D78) - Positive connection 1 (30a) (in engine compartment wiring harness)

* - Only for vehicles with a manual transmission

*2 - Only for vehicles with DSG transmission

*3 - from November 2010
