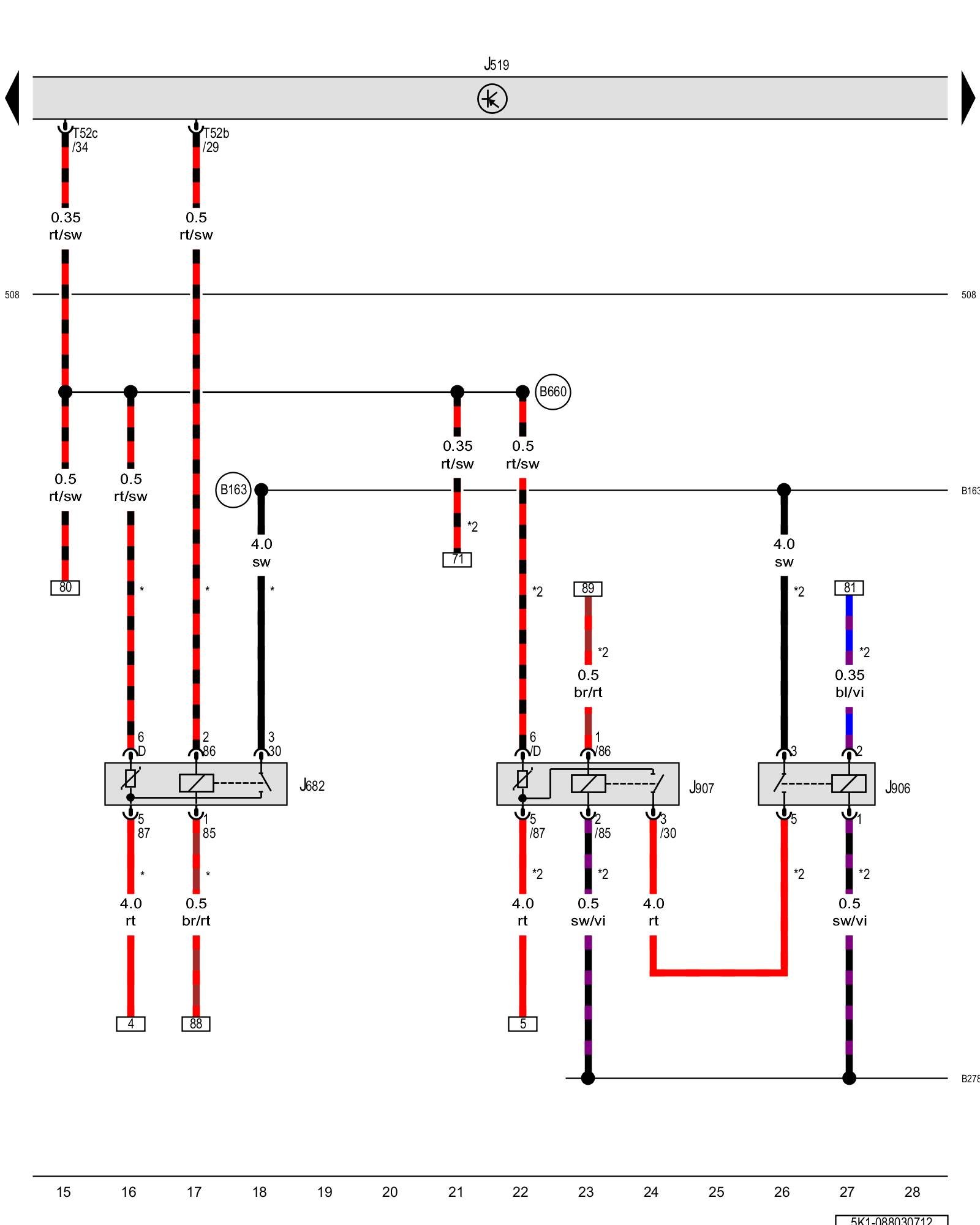

Diagram 88/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 50 power supply relay, Starter relay 1, Starter relay 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J682 - Terminal 50 power supply relay Overview Of Relay Carrier

J906 - Starter relay 1 Overview Of Relay Carrier

J907 - Starter relay 2 Overview Of Relay Carrier

T52b - 52-pin connector

T52c - 52-pin connector

(508) - Terminal 30 threaded connection (on E-box)

(B163) - Positive connection 1 (15) (in interior wiring harness)

(B278) - Positive connection 2 (15a) (in main wiring harness)

(B660) - Diagnostic terminal 50 connection (in main wiring harness)

* - Only for vehicles without access/start authorization system

*2 - only for vehicles with access/start authorization system
