Window Regulator Motor, Installing

Window Regulator Motor, Installing

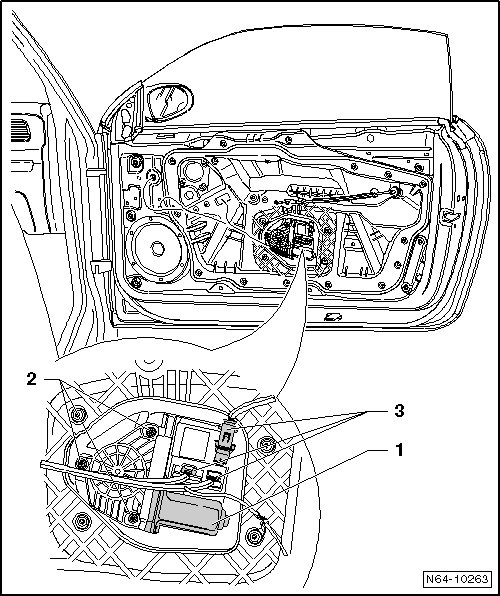

- Install the window regulator motor - 1 - and pull door window up and down so that splines are located better between motor and cable drum.

Tightening specification for window regulator motor screws - 2 -: 3.5 Nm

- Connect connectors - 3 -.

The window regulator loses its route after low voltage.

• The roof is closed.

• The rear lid is adjusted.

- Let window regulator drive twice upward and downward to stop respectively. This ensures the window is ready for use. Pinch protection is activated.

- Continue by performing the steps used in removal in reverse order.
