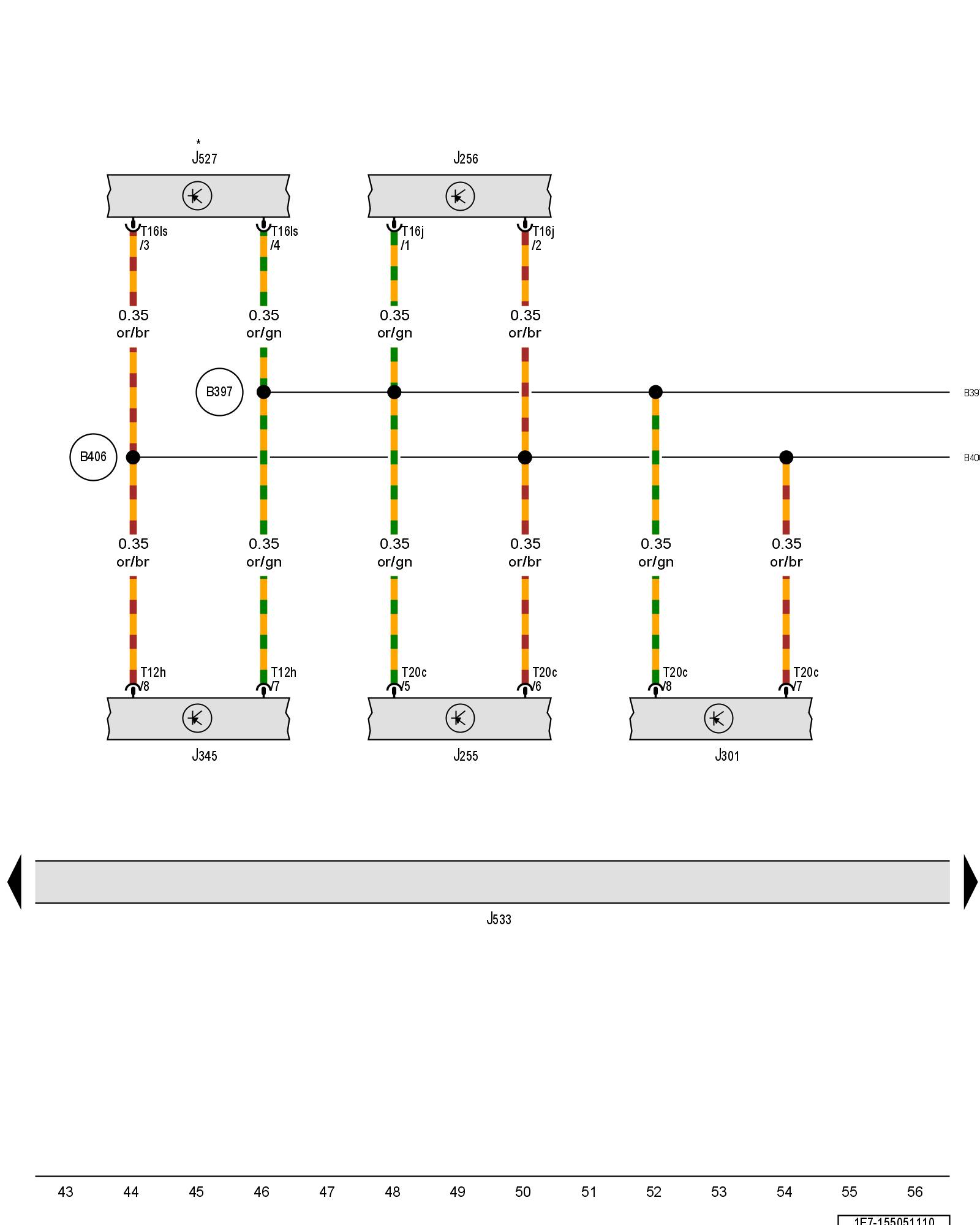

Diagram 155/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Climatronic control module, Convertible top control module, A/C control module, Towing recognition control module, Steering column electronics control module, Data bus on board diagnostic interface, Comfort system CAN bus high connection 1 (in main wiring harness), Comfort system CAN bus low connection 1 (in main wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J255 - Climatronic control module Overview of Control Modules

J256 - Convertible top control module Top Convertible System Overview

J301 - A/C control module Overview of Control Modules

J345 - Towing recognition control module

J527 - Steering column electronics control module Overview of Control Modules

J533 - Data bus on board diagnostic interface Overview of Control Modules

T12h - 12-pin connector

T16j - 16-pin connector

T16ls - 16-pin connector

T20c - 20-pin connector

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - From May 2010
