Diagram 155/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

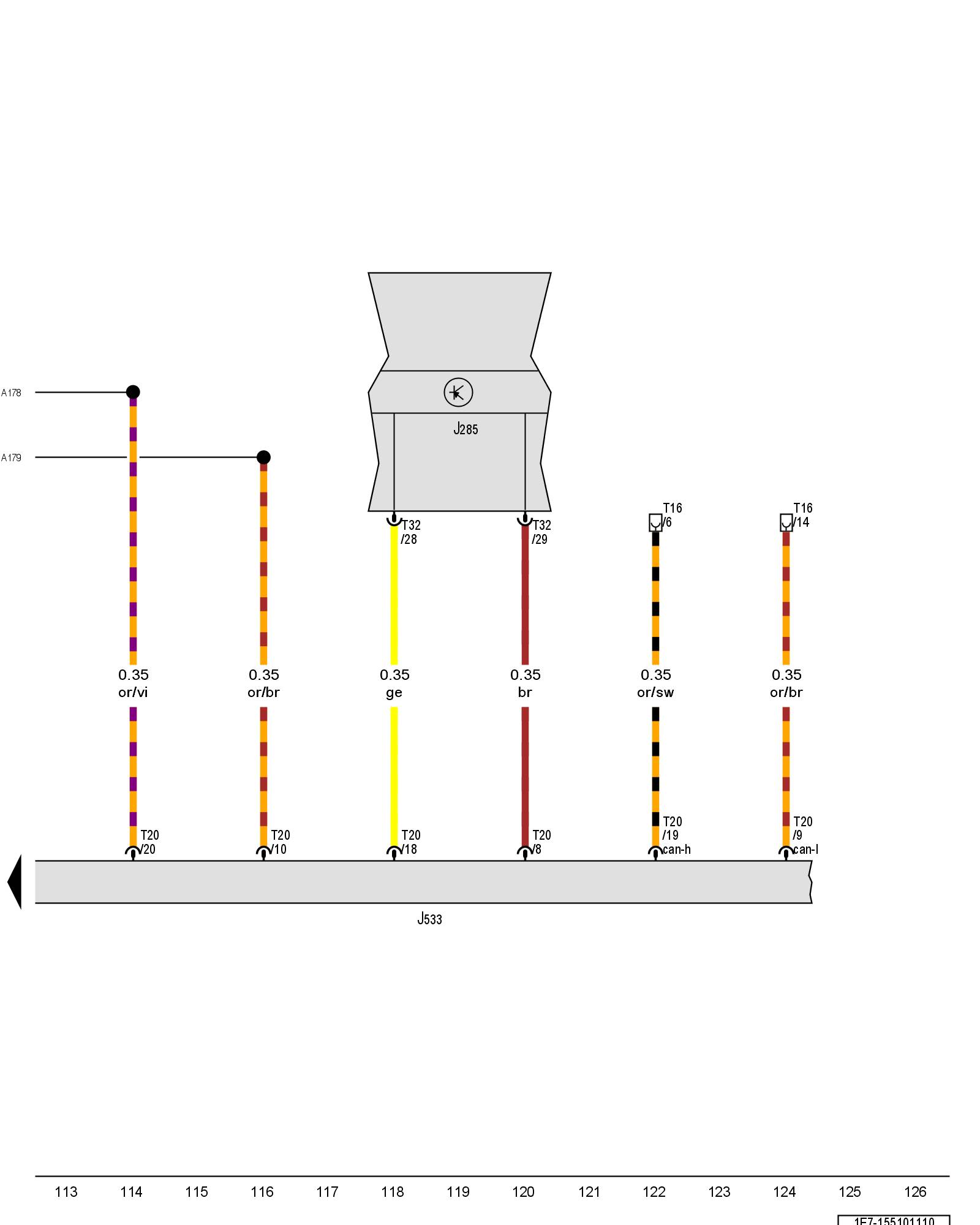

Instrument cluster control module, Data bus on board diagnostic interface, 16-pin connector, Infotainment CAN bus high connection (in instrument panel wiring harness), Infotainment CAN bus low connection (in instrument panel wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument cluster control module Overview of Control Modules

J533 - Data bus on board diagnostic interface Overview of Control Modules

T16 - 16-pin connector

T20 - 20-pin connector

T32 - 32-pin connector

(A178) - Infotainment CAN bus high connection (in instrument panel wiring harness)

(A179) - Infotainment CAN bus low connection (in instrument panel wiring harness)

Previous Diagram 155/9 (Tracks 99-112)
