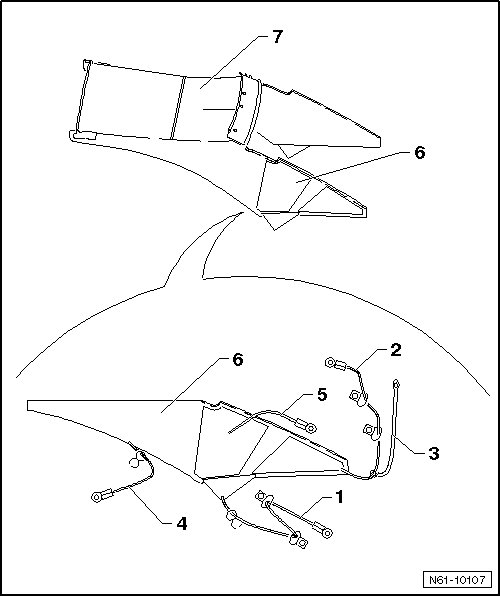

Tensioned Headliner Tensioning Bands Assembly Overview

Tensioned Headliner Tensioning Bands Assembly Overview

• Before routing tensioning bands, tensioned headliner must be installed.

• The sequence for securing tensioning bands must be followed exactly.






1 Tensioning band 1

• Routing on main hinge

• Routing plan, refer to => [ Routing Tension Band 1 ] Routing Tension Band 1

2 Tensioning band 2

• Routing to rear window frame

• Routing plan, refer to => [ Routing Tensioning Bands 2 and 3 ] Routing Tensioning Bands 2 and 3

3 Tensioning band 3

• Routing on rear window frame

• Routing plan, refer to => [ Routing Tensioning Bands 2 and 3 ] Routing Tensioning Bands 2 and 3

4 Tensioning band 4

• Routing around main hinge

• Routing plan, refer to => [ Routing Tensioning Bands 4 and 5 ] Routing Tensioning Bands 4 and 5

5 Tensioning band 5

• Routing around main hinge

• Routing plan, refer to => [ Routing Tensioning Bands 4 and 5 ] Routing Tensioning Bands 4 and 5

6 Side part of tensioned headliner

• Only this side part of the tensioned headliner is shown in the routing plan.

7 Tensioned headliner
