Rear Lid Trim

Rear Lid Trim

Removing

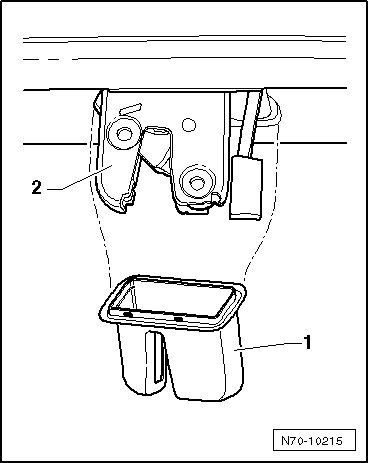

- Remove cover - 1 - from lock - 2 -.

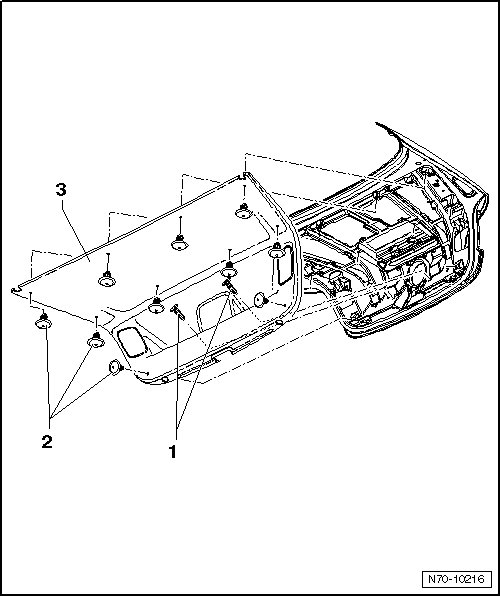

- Remove the 2 bolts - 1 - (1.5 Nm).

- Remove a total of 10 securing clips - 2 -.

- Remove trim - 3 - from lid.






Vehicles with a luggage compartment emergency release

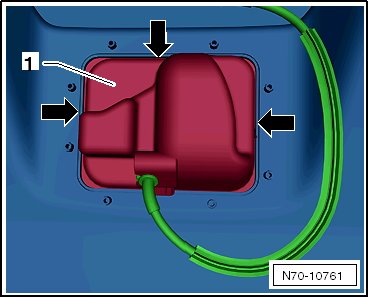

- Unclip the 3 retainers - arrows - from the luggage compartment emergency release - 1 - on the back of the trim panel.






- Remove the luggage compartment emergency release - 1 - from the trim panel.

Installation

- Install in reverse order of removal.

• Before installation, inspect the retaining elements for damage and replace if necessary.
