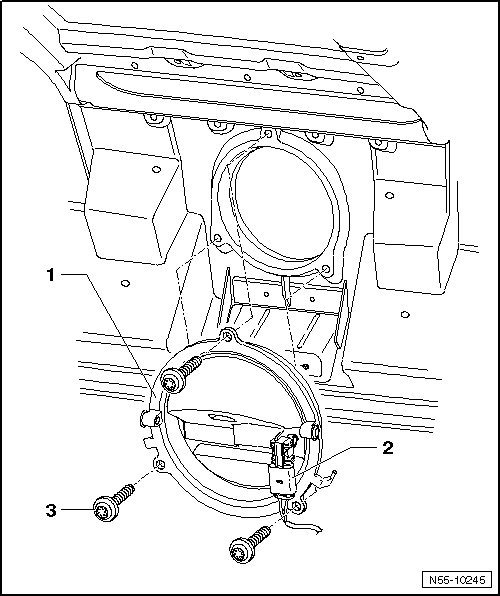

Release Element Assembly Overview

Release Element Assembly Overview






1 Release element

• Removing and Installing, refer to => [ Release Element ] Release Element

2 Connector

3 Bolt

• Quantity: 3

• Tightening specification: 4 Nm
