Rear Bumper Cover through 12.10, Rear Bumper Cover Attachments

Rear Bumper Cover Attachments

• Depending on model version, slight deviations for attachments must be considered.

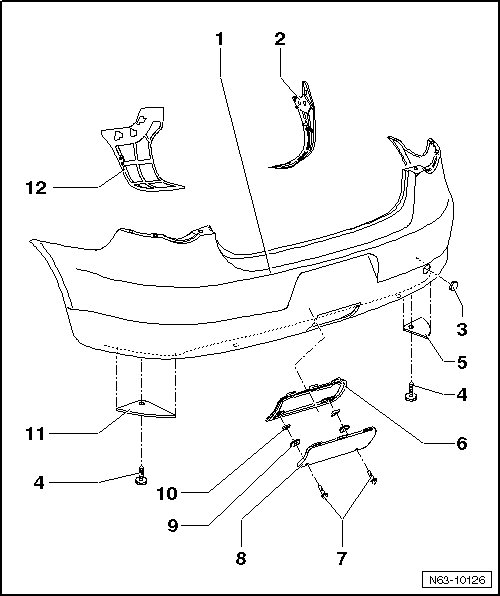

1 Rear bumper cover

• PP/EPDM material

• Removing and Installing, refer to => [ Rear Bumper Cover ] Rear Bumper Cover through 12.10

2 Right guide

• Locked to bumper cover - 1 -.

3 Towing eyelet cap

• Engaged in rear bumper cover - 1 -.

4 Bolt

• Quantity: 2

• Tightening specification: 2 Nm

5 Right insert

• Attached to rear bumper cover - 1 - with screw - 4 -.

6 Mount

• Trailer hitch cover mount

7 Quick release screw

• Quantity: 2

• For securing trailer hitch cover

8 Trailer hitch cover

• For trailer hitch with removable ball head.

9 Retaining washer

• Secures quick release secure from falling out when loosening.

10 Spring clamp

• Holds trailer hitch cover - 1 - and quick release screw - 7 -.

11 Left insert

• Attached to rear bumper cover - 1 - with screw - 4 -.

12 Left guide

• Locked to bumper cover - 1 -.
