Description and Operation
>>

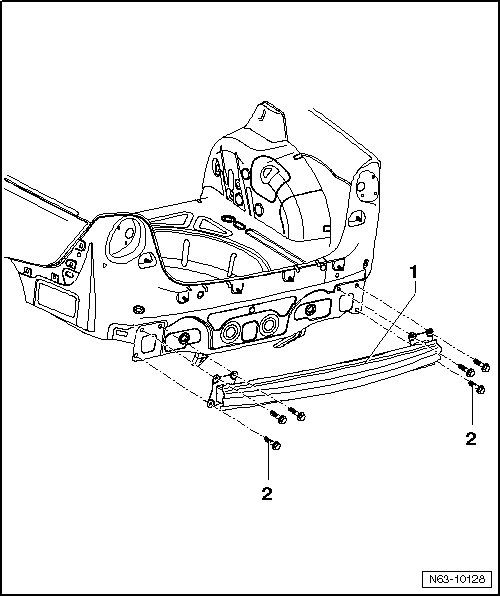

Rear Bumper Cover Assembly Overview
>>
Carrier
Carrier
Rear
Bumper
Cover Assembly Overview
1
Rear
bumper
carrier
2
Bolt
•
3 on each side
•
Tightening specification: 20 Nm
