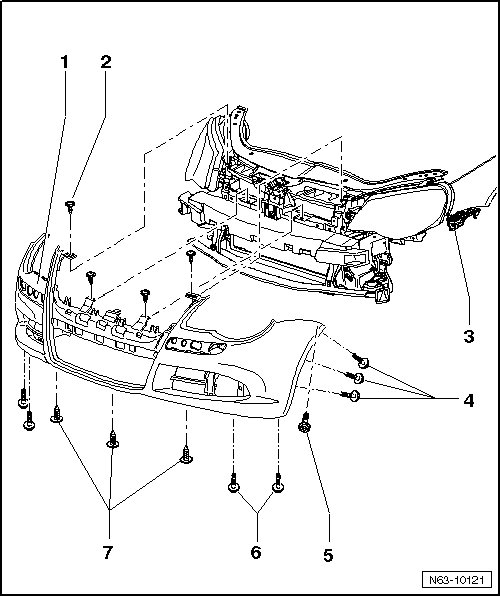

Front Bumper Cover Assembly Overview






1 Front bumper cover

• PP/EPDM material

• Removing and Installing, refer to => [ Front Bumper Cover ] Front Bumper Cover through 12.10

2 Bolt

• Quantity: 4

• Tightening specification: 2 Nm

3 Guide trim

• Left and right

4 Bolt

• 3 on each side

• Tightening specification: 2 Nm

5 Bolt

• Left and right

• Pointing upward

• Tightening specification: 2 Nm

6 Bolt

• 2 on each side

• Tightening specification: 2 Nm

7 Bolt

• Quantity: 3

• Tightening specification: 2 Nm
