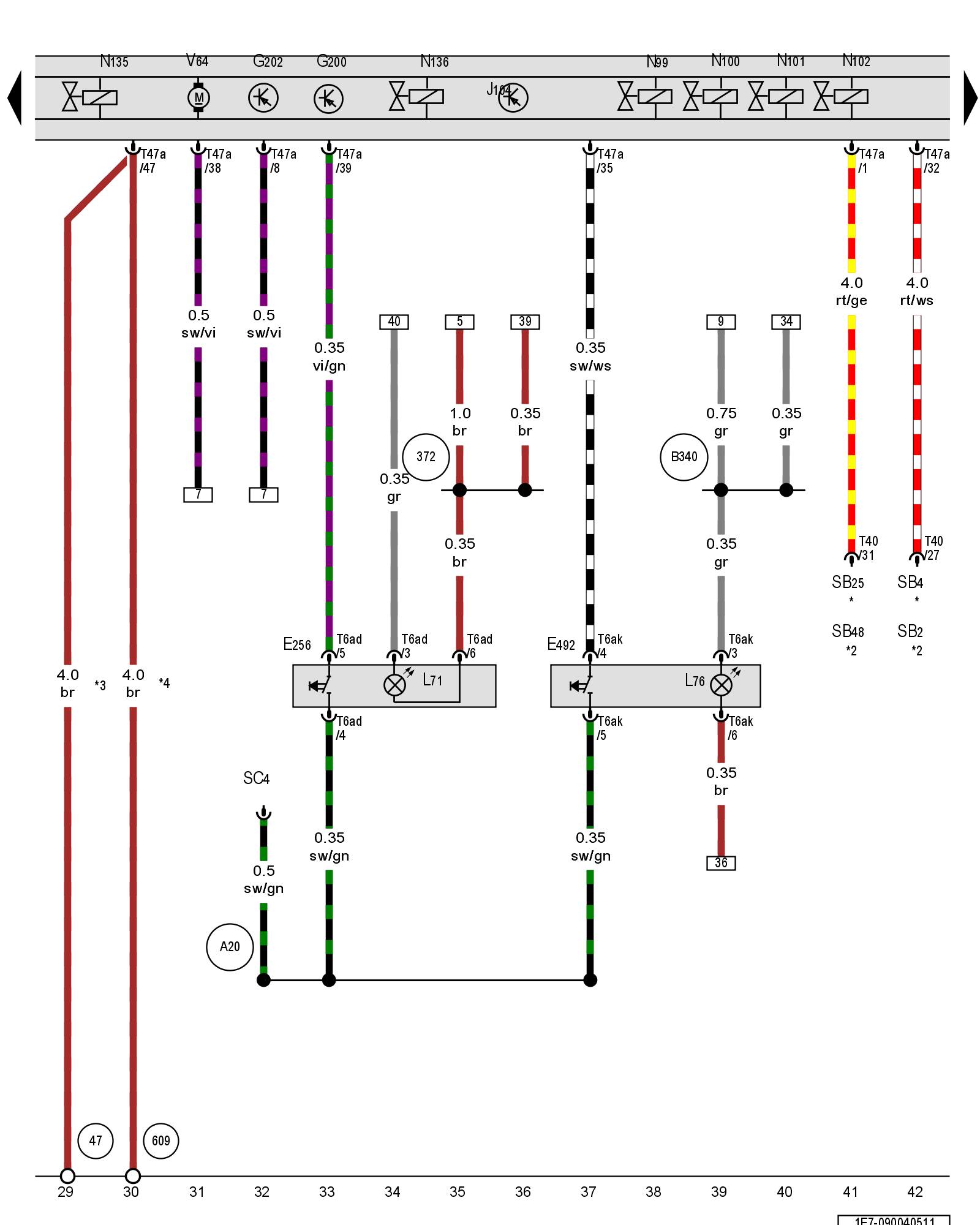

Diagram 90/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


ASR/ESP button, Tire pressure monitoring display button, ABS control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E256 - ASR/ESP button

E492 - Tire pressure monitoring display button

G200 - Transverse acceleration sensor Anti-lock Brake System with EDL/ASR/ESP

G202 - Rotation rate sensor Anti-lock Brake System with EDL/ASR/ESP

J104 - ABS control module Overview of Control Modules

L71 - ASR switch illumination bulb

L76 - Push button illumination bulb

N99 - Right front ABS inlet valve

N100 - Right front ABS outlet valve

N101 - Left front ABS inlet valve

N102 - Left front ABS outlet valve

N135 - Right rear ABS outlet valve

N136 - Left rear ABS outlet valve

SB2 - Fuse 2 (on fuse panel B) Overview of Fuses

SC4 - Fuse 4 (on fuse panel C) Overview of Fuses

SB4 - Fuse 4 (on fuse panel B) Overview of Fuses

SB25 - Fuse 25 (on fuse panel B) Overview of Fuses

SB48 - Fuse 48 (on fuse panel B) Overview of Fuses

T6ad - 6-pin connector

T6ak - 6-pin connector

T40 - 40-pin connector

T47a - 47-pin connector

V64 - ABS hydraulic pump Anti-lock Brake System with EDL/ASR/ESP

(47) - Ground connection in right front footwell Overview of Ground Connections In Interior

(372) - Ground connection 7 (in main wiring harness)

(609) - Ground connection in plenum chamber, right Overview of Ground Connections in Engine Compartment

(A20) - Positive connection (15a) (in instrument panel wiring harness)

(B340) - Connection 1 (58d) (in main wiring harness)

* - E-Box low

*2 - E-Box high

*3 - Only for left-hand drive vehicles

*4 - Only for right-hand drive vehicles
