Trunk / Liftgate Latch Release Cable: Description and Operation

Rear Lid Emergency Release

• If rear lid does not open, it can be opened by hand using the emergency release.

• The trim is removed in the illustration only to show the emergency release routing. Trim does not need to be removed to operate emergency operation.

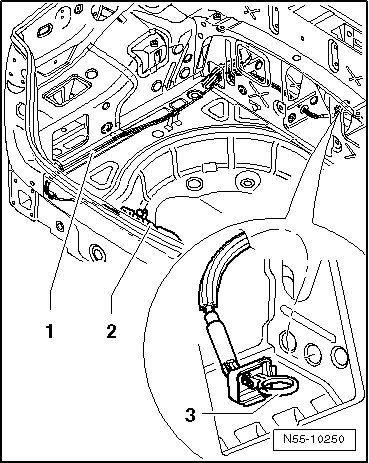

Emergency release actuator - 3 - is located behind pass-through cover.






1. Release cable

2. End plate

3. Actuator
