Relay Arrangements 3.6L (V6) FSI Engine:

Relay

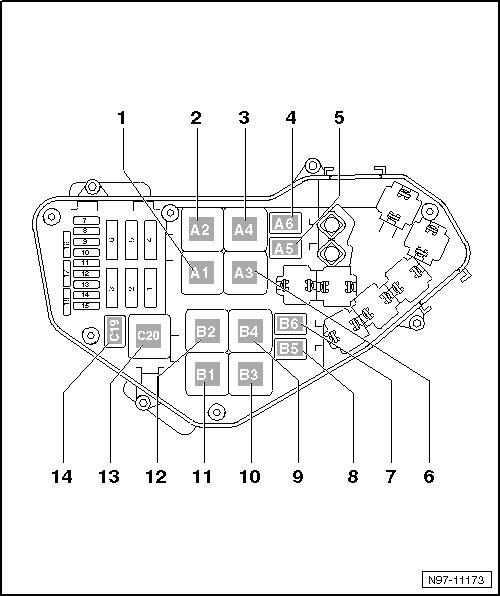

Relay Arrangements 3.6L (V6) FSI engine:







1 Not used
• Connection A1
2 Not used
• Connection A2
3 Not used
• Connection A4
4 Not used
• Connection A6
5 Auxiliary coolant pump relay -J496- (404)
• Connection A5
6 Motronic engine control module power supply relay -J271- (614)
• Connection A3
7 Not used
• Connection B6
8 Not used
• Connection B5
9 Motronic engine control module power supply relay 2 -J670- (614) through May 2007
• Connection B4
10 Not used
• Connection B3
11 Not used
• Connection B1
12 Not used
• Connection B2
13 Power supply relay, terminal 50 -J682- (433)
• Connection C20
14 Not used
• Connection C19
