Luggage Compartment Lamp (W3)

Luggage Compartment Lamp (W3)


When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool (plastic wedge, screwdriver) will be positioned using commercially available adhesive tape.

• Two luggage compartment lights are installed. Removal and installation is the same for both luggage compartment lights and is only described for one of the lights.

Removal

- Turn off the ignition and all electric consumers and remove the key.

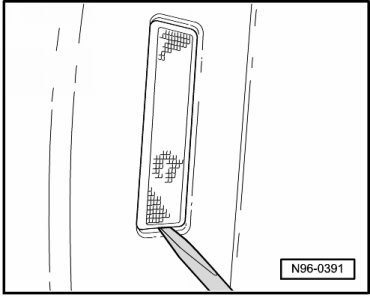

- Carefully pry out Luggage Compartment Lamp using a screwdriver.






- Release and disconnect the connector - arrow -.






Bulb, Replacing

- Push contact plate - 1 - of Luggage Compartment Lamp in - direction of arrow - and remove light lamp - 2 - out of socket.






- Replace the tubular bulb (12V, 10 W).

Installation

Install in reverse order of removal.
