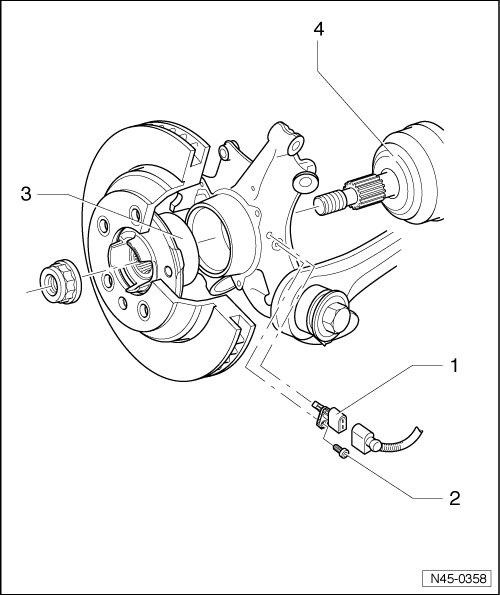

Rear Wheel Speed Sensor Overview

Rear Wheel Speed Sensor Overview





1 Anti-lock Brake System (ABS) Wheel Speed Sensor

• Before installing the sensor, clean the inner surface of the hole and lubricate with polycarbamide grease (G 052 142 A2).

• Removing and installing, refer to => [ Rear Wheel Speed Sensor ] Rear Wheel Speed Sensor.

2 Hex Socket Bolt

• 8 Nm

3 Wheel Hub with Wheel Bearing

• The ABS sensor ring is installed in the wheel bearing.

4 Drive Axle
