Steering Column Electronic Systems Control Module -J527-






Control modules in rear seats

Steering Column Electronic Systems Control Module -J527-

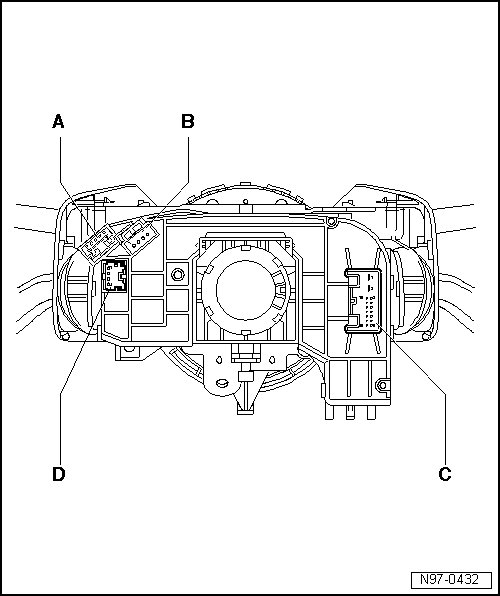

Pin Connectors:







A - 5-Pin Connector -T5-

B - 4-Pin Connector -T4k-

C - 16-Pin Connector -T16a-

D - 4-Pin Connector -T4-
