Driver Reading and Front Passenger Map/Reading Lamp (W13)/(W19)

Driver Reading and Front Passenger Map/Reading Lamp (W13)/(W19)


When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool (plastic wedge, screwdriver) will be positioned using commercially available adhesive tape.

Removal

- Turn off the ignition and all electric consumers and remove the key.

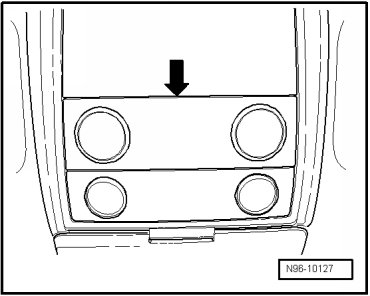

- Carefully pry diffusion lens out of console in molded headliner - arrow -.

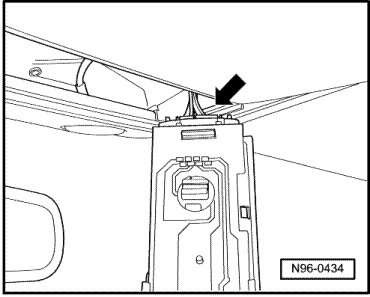

- Release and disconnect the connector - arrow -.






Bulb, Replacing

• Replacement of lamps for both reading lights is performed in the same way and is only described for one light.

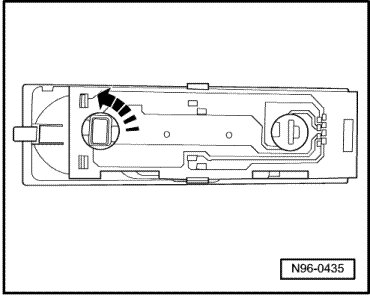

- Turn light socket in direction of - arrow - and remove.






- Carefully remove bulb from socket.






- Replace bulb (12V, 5 W).

Installation

Install in reverse order of removal.
