Right Rear Tire Pressure Monitoring Transmitter

Right Rear Tire Pressure Monitoring Transmitter

Removing

• The Right Rear Tire Pressure Monitoring Transmitter (in wheel housing) (G434) is installed in the wheel housing liner opposite the direction of travel.

- Switch ignition off.

- Remove wheel housing liner..

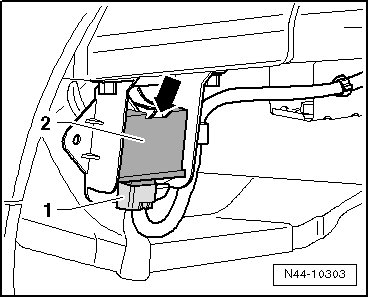

- Separate connector - 1 -.





- Raise the hook - arrow - and remove the right rear tire pressure monitoring transmitter (in wheel housing) - 2 -.

Installing

- Insert the right rear tire pressure monitoring transmitter (in wheel housing) in the bracket.

Make sure the hook - arrow - engages in front of the right rear tire pressure monitoring transmitter (in wheel housing) - 2 -.





- Connect harness connector - 1 -.

- Install wheel housing liner..
