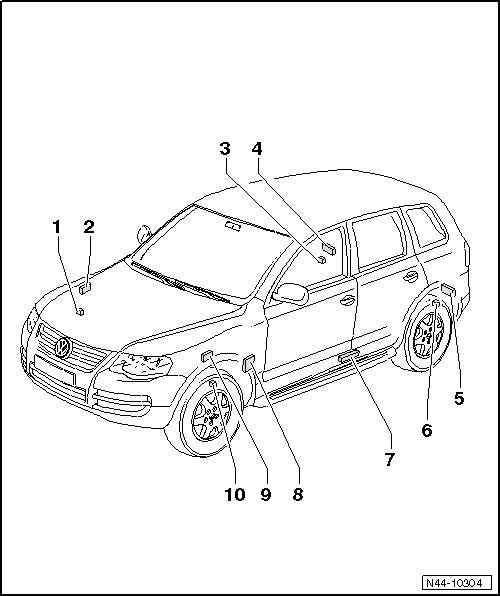

Tire Pressure Monitoring System Component Overview

Tire Pressure Monitoring System Component Overview






1 Right Front Tire Pressure Monitoring Sensor (G223)

• Removing and installing, refer to => [ Tire Pressure Sensor ] Tire Pressure Sensor.

2 Right Front Tire Pressure Monitoring Transmitter (in wheel housing) (G432)

• Removing and installing, refer to => [ Right Front Tire Pressure Monitoring Transmitter ] Right Front Tire Pressure Monitoring Transmitter.

3 Right Rear Tire Pressure Monitoring Sensor (G225)

• Removing and installing, refer to => [ Tire Pressure Sensor ] Tire Pressure Sensor.

4 Right Rear Tire Pressure Monitoring Transmitter (in wheel housing) (G434)

• Removing and installing, refer to => [ Right Rear Tire Pressure Monitoring Transmitter ] Right Rear Tire Pressure Monitoring Transmitter.

5 Left Rear Tire Pressure Monitoring Transmitter (in wheel housing) (G433)

• Removing and installing, refer to => [ Left Rear Tire Pressure Monitoring Transmitter ] Left Rear Tire Pressure Monitoring Transmitter.

6 Left Rear Tire Pressure Monitoring Sensor (G224)

• Removing and installing, refer to => [ Tire Pressure Sensor ] Tire Pressure Sensor.

7 Tire Pressure Monitoring Antennas (R207)

• Removing and installing, refer to => [ Tire Pressure Monitoring Antennas ] Tire Pressure Monitoring Antennas.

• Component location: bolted to the left sill under the B-pillar.

8 Tire Pressure Monitoring Control Module (J502)

• Removing and installing, refer to => [ Tire Pressure Monitoring Control Module ] Tire Pressure Monitoring Control Module.

• Component location: On mounting bracket for parking brake pedal.

9 Left Front Tire Pressure Monitoring Transmitter (in wheel housing) (G431)

• Removing and installing, refer to => [ Left Front Tire Pressure Monitoring Transmitter ] Left Front Tire Pressure Monitoring Transmitter.

10 Left Front Tire Pressure Monitoring Sensor (G222)

• Removing and installing, refer to => [ Tire Pressure Sensor ] Tire Pressure Sensor.
