Engine Oil, Checking Level

Engine Oil, Checking Level

• After stopping the engine, wait for at least 3 minutes for the oil to flow back into the oil pan.

• Remove dipstick and wipe with clean rag. Replace dipstick and push down to stop.

• Observe waste disposal regulations!

- Pull out dipstick again and read oil level.

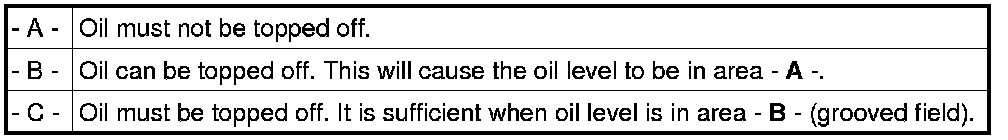

If the dipstick appears as illustrated:









If oil level is above area - A -, the catalytic converter can be damaged.

- When oil level is below marking - C -, top off with oil to marking - A -. Oil specification, refer to ServiceNet and/or Owners Manual.
