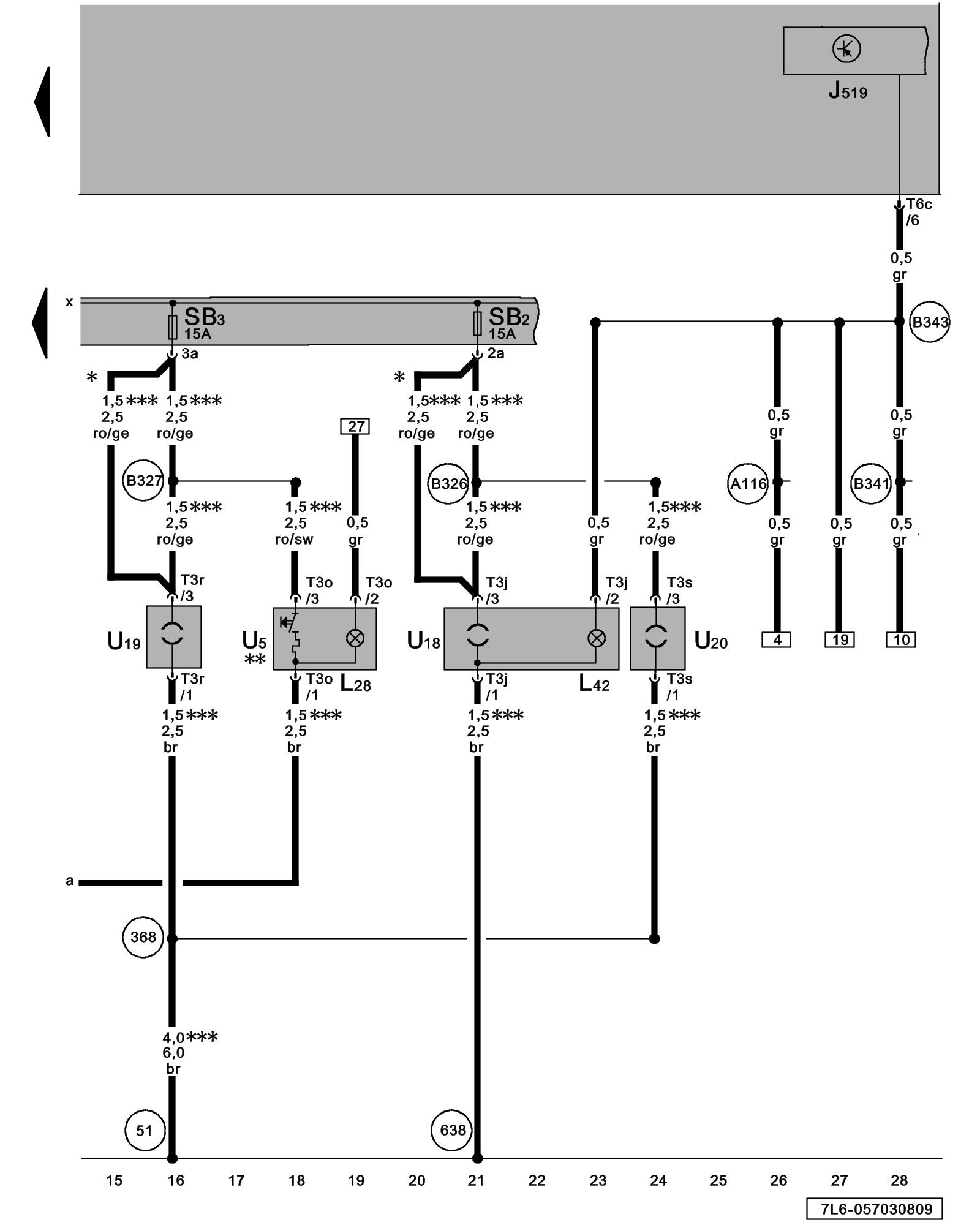

Diagram 57/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, 12 V Sockets, Cigarette Lighter Illumination, Socket Illumination





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Rear Seats

L28 - Cigarette Lighter Illumination

L42 - Socket Illumination

SB2 - Fuse 2 (on fuse panel B) Overview Of Fuses Overview Of Fuses

SB3 - Fuse 3 (on fuse panel B) Overview Of Fuses Overview Of Fuses

T3j - 3-Pin Connector, right front center console

T3o - 3-Pin Connector

T3r - 3-Pin Connector, rear center console

T3s - 3-Pin Connector, in luggage compartment, right rear

T6c - 6-Pin Connector, white

U5 - 12 V Socket

U18 - 12 V Socket 2, center console, front

U19 - 12 V Socket 3

U20 - 12 V Socket 4, luggage compartment, right rear

(51) - Ground Connection (in luggage compartment, right) Overview Of Ground Connections In Luggage Compartment

(368) - Ground Connection 3 (in main wiring harness)

(638) - Ground Connection (on right A-pillar) Overview Of Ground Connections In Interior

(A116) - Connection 2 (58d) (in main wiring harness)

(B326) - Plus Connection 12 (30a) (in main wiring harness)

(B327) - Plus Connection 13 (30a) (in main wiring harness)

(B341) - Connection 2 (58d) (in main wiring harness)

(B343) - Connection 4 (58d) (in main wiring harness)

* - Only models with smokers equipment

** - Only applicable to US/CDN

*** - From November 2007
