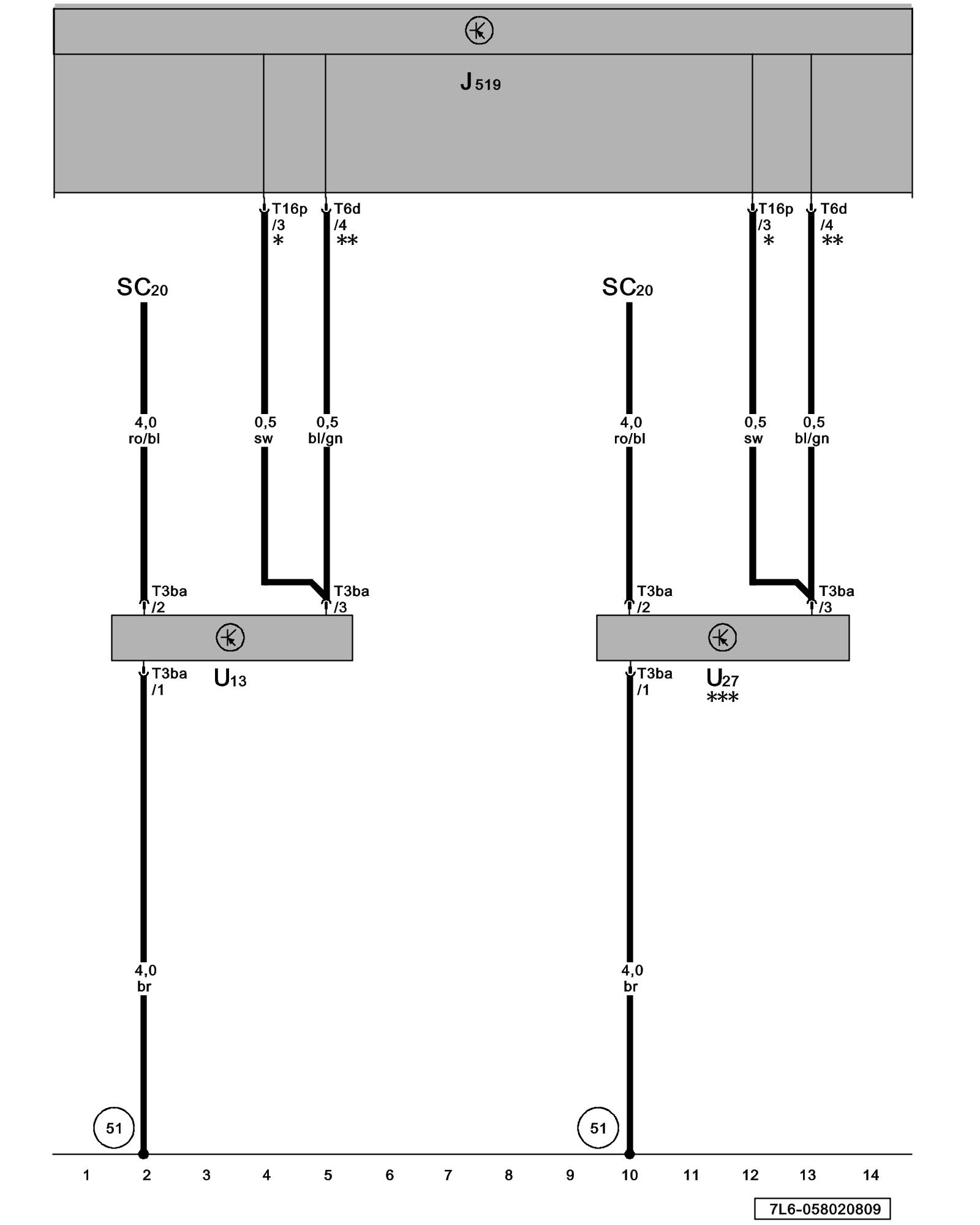

Diagram 58/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Converter with Socket, 12V-115V, Converter with Socket, 12V-230V





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Rear Seats

SC20 - Fuse 20 (on fuse panel C) Overview Of Fuses Overview Of Fuses

T3ba - 3-Pin Connector

T6d - 6-Pin Connector, blue

T16p - 16-Pin Connector, black

U13 - Converter with Socket, 12V, 230V, in luggage compartment, right Control Modules In Luggage Compartment

U27 - Converter with Socket, 12V, 115V, in luggage compartment, right

(51) - Ground Connection (in luggage compartment, right) Overview Of Ground Connections In Luggage Compartment

* - Only models with one battery

** - Only models with dual batteries

*** - Only applicable to US/CDN
