Diagram 43/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


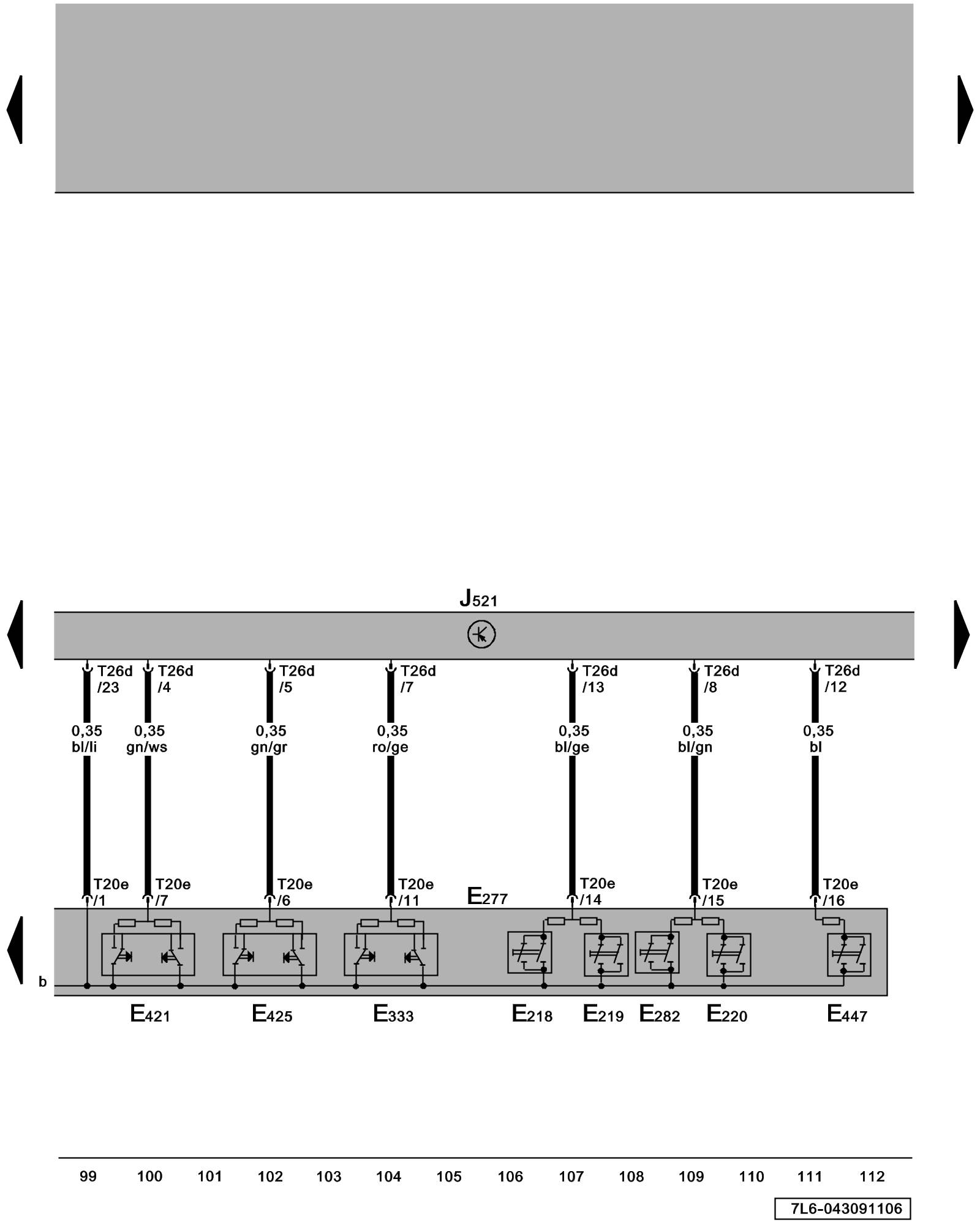

Passenger Memory Seat Control Module, Front Passenger's Seat Memory Program Control, Seat Memory Adjustment Position 1-4 Button, Safety Belt Height Adjustment Button, Inclination Adjustment Button





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E218 - Seat Memory Adjustment Position 1 Button

E219 - Seat Memory Adjustment Position 2 Button

E220 - Seat Memory Adjustment Position 3 Button

E277 - Front Passenger's Seat Memory Program Control

E282 - Seat Memory Adjustment Position 4 Button

E333 - Safety Belt Height Adjustment Button

E421 - Inclination Adjustment Button

E425 - Backrest Adjustment Button

E447 - Seat Position Memory Button

J521 - Passenger Memory Seat Control Module Control Modules in Rear Seats

T20e - 20-Pin Connector

T26d - 26-Pin Connector

Previous Diagram 43/8 (Tracks 85-98)

Next Diagram 43/10 (Tracks 113-126)
