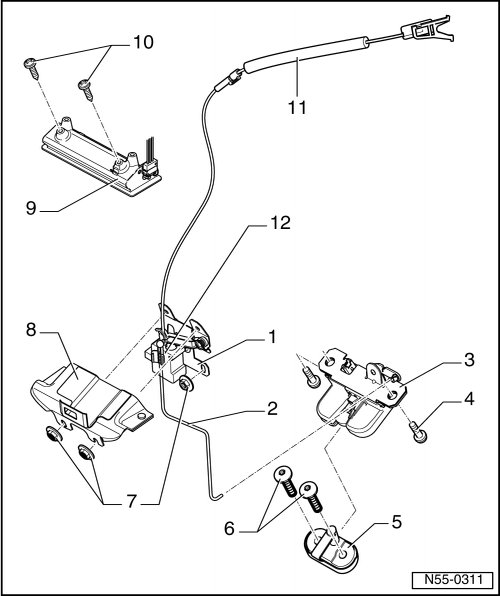

Locking and Unlocking Components Assembly Overview

Locking and Unlocking Components Assembly Overview





1 Carrier piece

• With actuator lever for emergency release lever and Rear Lid Unlock Motor -V139-.

2 Operating rod

• From lid lock to actuator lever for emergency release lever.

3 Lid lock

• Removing and Installing, refer to => [ Rear Lid Lock ] Rear Lid Lock

4 Bolt

• Quantity: 2

• 25 Nm

5 Striker pin

• Also with closing assist.

• Removing and Installing, refer to => [ Striker Pin with Closing Assist ] Striker Pin with Closing Assist

• Adjusting, refer to => [ Striker Pin, Adjusting ] Rear Lid, Adjusting

6 Bolt

• Quantity: 2

• 25 Nm

7 Hex nut

• Quantity: 3

• 8 Nm

8 Anti-theft protection

9 Handle

• For vehicles with spare wheel mount on the rear lid, refer to => [ Rear Lid Handle, Spare Wheel Mounting on Rear Lid ] Rear Lid Handle, Spare Wheel Mounting on Rear Lid

10 Bolt

• Quantity: 2

• 4.5 Nm

11 Release

• For emergency release lever.

12 Motor to unlock rear lid

• Removing and Installing, refer to => [ Rear Lid Unlock Motor ] Rear Lid Unlock Motor
