Gas-filled Strut for Hinged Window Assembly Overview

Gas-filled Strut for Hinged Window Assembly Overview

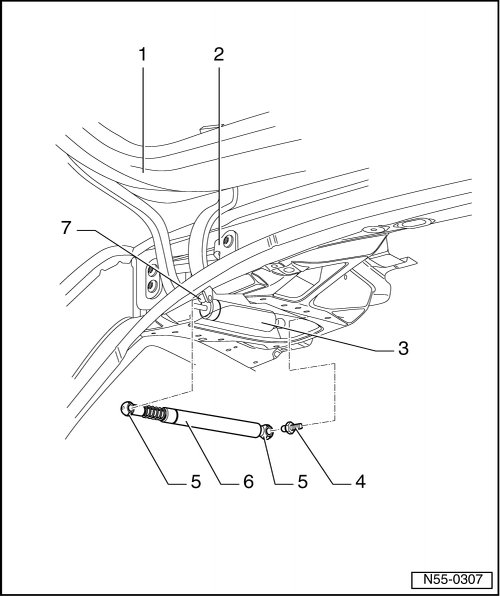

1 Rear Lid

2 Rear lid hinge

3 Rear lid gas-filled strut

• Removing and Installing, refer to => [ Gas-filled Strut, Rear Lid ] Gas-filled Strut, Rear Lid

• Venting gas, refer to => [ Gas Strut, Venting ] Gas Strut, Venting

4 Ball head pin

• 20 Nm

5 Securing bracket

6 Gas-filled strut for hinged window

• Removing and Installing, refer to => [ Gas-filled Strut for Hinged Window ] Gas-filled Strut for Hinged Window

• Venting gas, refer to => [ Gas Strut, Venting ] Gas Strut, Venting

7 Ball head pin

• Part of the rear lid hinge
