Diagram 28/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

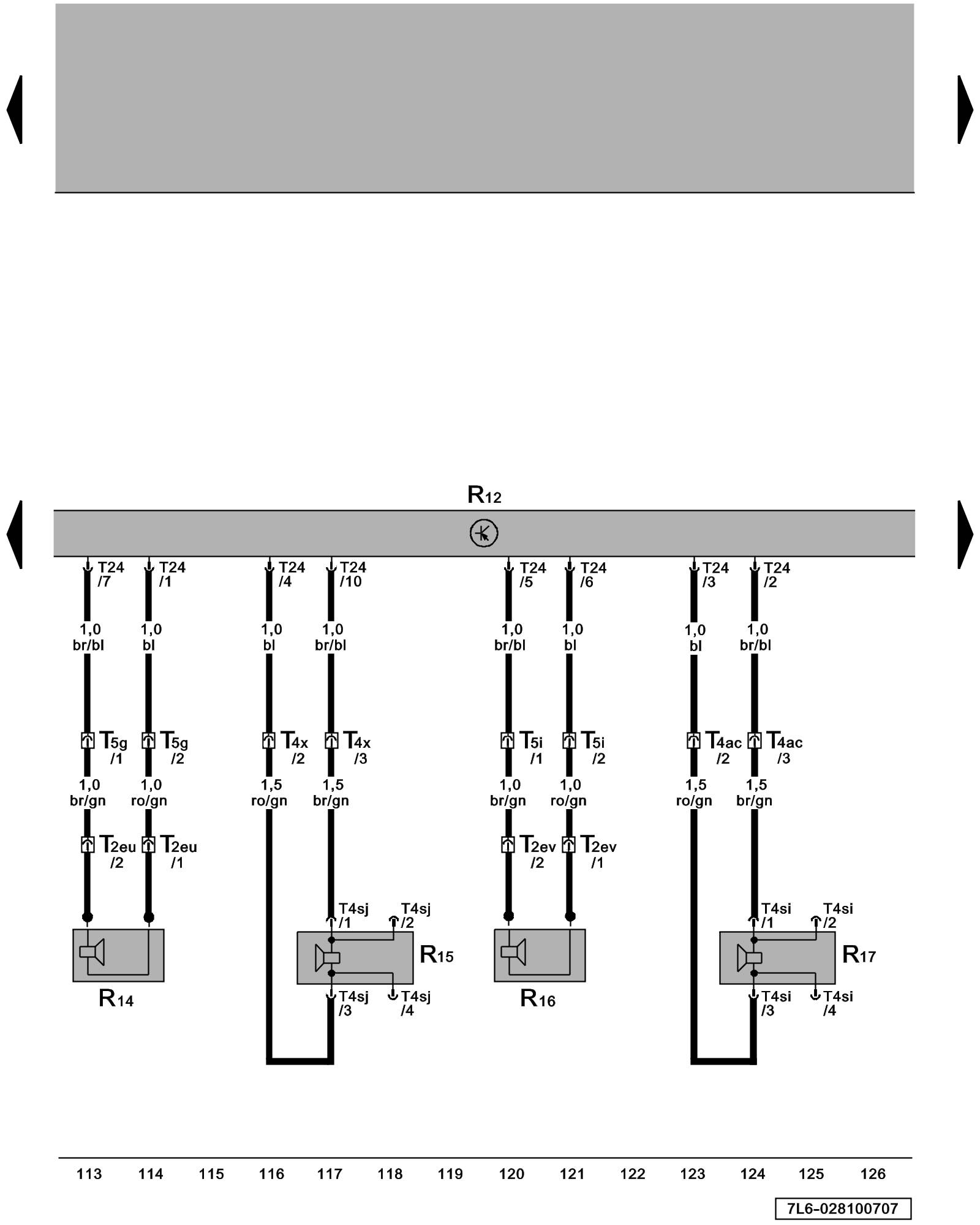

Amplifier, Left and Right Rear Speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R12 - Amplifier (in luggage compartment, right) RNS 510 Radio Nav System Overview

R14 - Left Rear Treble Speaker

R15 - Left Rear Bass Speaker RNS 510 Radio Nav System Overview

R16 - Right Rear Treble Speaker

R17 - Right Rear Bass Speaker RNS 510 Radio Nav System Overview

T2eu - Double Connector, black, in door

T2ev - Double Connector, black, in door

T4ac - 4-Pin Connector, right B-pillar Overview Of Connector Stations And Connectors

T4si - 4-Pin Connector, black, in door

T4sj - 4-Pin Connector, black, in door

T4x - 4-Pin Connector, B-pillar, left Overview Of Connector Stations And Connectors

T5g - 5-Pin Connector, B-pillar, left Overview Of Connector Stations And Connectors

T5i - 5-Pin Connector, right B-pillar Overview Of Connector Stations And Connectors

T24 - 24-Pin Connector, grey
